Multi-Spec Electrical Laminated Wood Saves Costs for Transformer Insulation|Factory Direct

In the field of transformer manufacturing and maintenance, the cost of insulation materials accounts for a significant portion of the total cost. While ensuring that electrical performance and mechanical strength meet required standards, effectively controlling costs has become a common challenge for transformer manufacturers.

Multi-specification electrical laminated wood, with its excellent dielectric properties and good machinability, is increasingly becoming a preferred alternative to traditional insulation materials. By choosing a direct-from-manufacturer supply model, companies can reduce procurement costs at the source and achieve both cost reduction and efficiency improvement.

Introduction to Electrical Laminated Wood

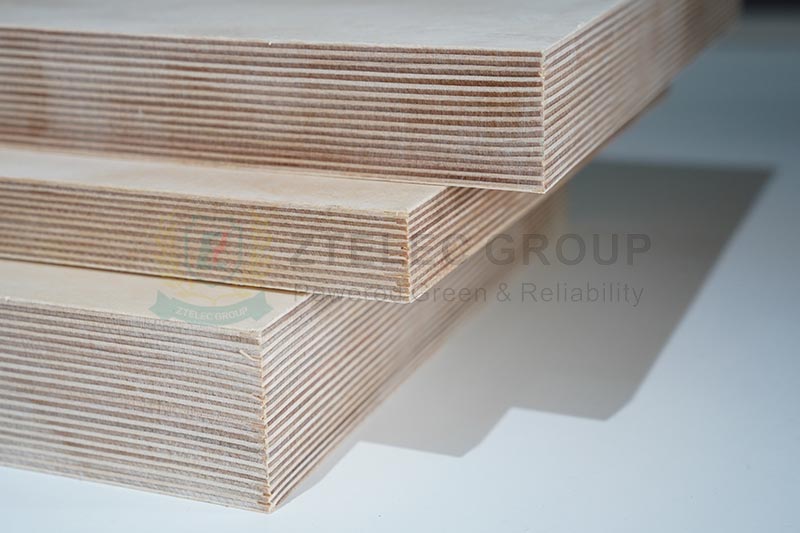

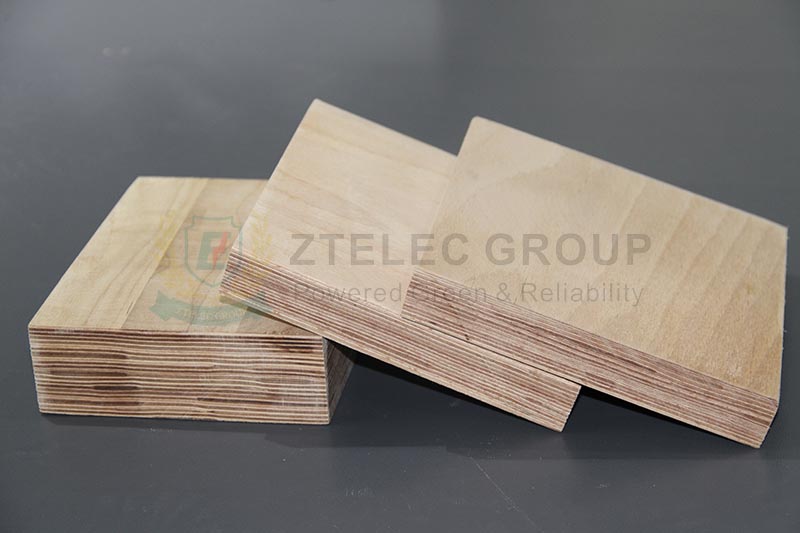

Electrical laminated wood is made from high-quality timber (such as birch veneers), which is impregnated with insulating resin and then laminated under high temperature and high pressure. When used in transformer oil, it exhibits excellent electrical properties and strong mechanical performance.

Key Features

Excellent Insulation Performance: Suitable for high-voltage applications.

High Mechanical Strength: Capable of withstanding winding clamping forces.

Good Oil Resistance: Maintains stable performance during long-term immersion in transformer oil.

Superior Machinability: The material can be easily processed by sawing, drilling, grooving, and other operations.

Key Advantages of Multi-Specification Electrical Laminated Wood

1. Customized Sizes Reduce Material Waste

Traditional insulation materials are usually purchased as standard large sheets and then cut into required shapes using CNC machining centers. The waste rate from offcuts typically reaches 20%–30%.

The multi-specification electrical laminated wood we provide can be customized in thickness, length, and width according to customer drawings. Whether thick boards or complex-shaped parts, pre-cut processing allows material utilization to exceed 95%. This significantly reduces waste at the source and directly lowers material costs.

2. Excellent Mechanical Performance Extends Service Life

During long-term transformer operation, insulation materials must withstand not only high voltage but also mechanical stresses caused by winding vibration and short-circuit forces.

Electrical laminated wood offers high compressive strength and excellent resistance to splitting. By using more durable materials, maintenance costs over the transformer’s lifecycle can be reduced, and the risk of downtime caused by insulation failure is significantly minimized—achieving hidden cost optimization.

3. Meets Diverse Structural Design Requirements

Transformers of different capacities and voltage levels have significantly different requirements for laminated wood dimensions:

Small-capacity transformers: Thin boards, small-sized components

Large power transformers: Thick boards, large structural parts

Ultra-high voltage equipment: High-density, high-strength materials

Multi-specification products enable one-stop integrated supply for all these applications.

Advantages of Direct Sales from Electrical Laminated Wood Manufacturers

When procuring industrial insulation materials, the more intermediaries involved, the harder it is to control quality. As a source manufacturer, we offer direct sales, bringing three core advantages:

1. Transparent Pricing

Direct shipping from the factory eliminates intermediary profits. For transformer manufacturers purchasing in bulk, we offer tiered pricing.

2. Strict Quality Control

From log selection to impregnation, pressing, and curing, every step is inspected internally at the factory. We strictly adhere to international/domestic standards such as GB/T 11020 or IEC 61061 to ensure stable moisture content (≤5%) and dielectric constant in each piece of laminated wood.

3. Flexible Delivery Time

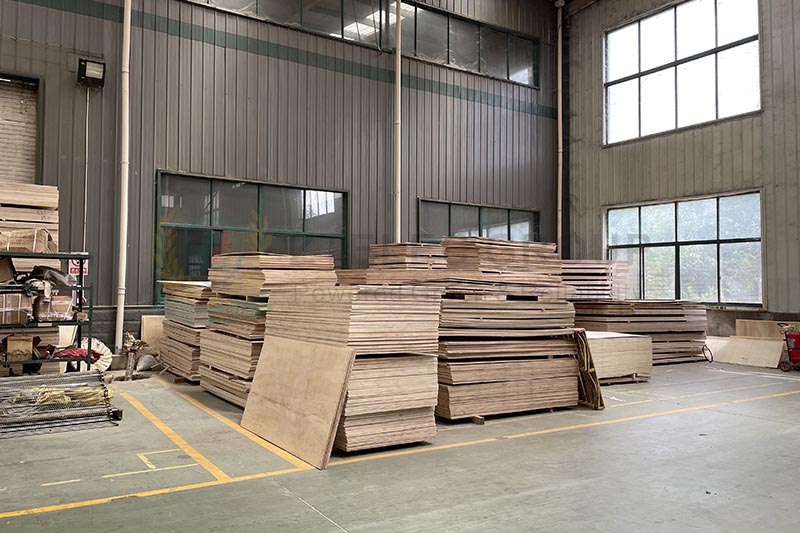

For the transformer repair market or urgent orders, we maintain a large inventory of semi-finished and finished products in various specifications. Standard specifications can be shipped within 24 hours, and custom orders can be delivered in as little as 7 days.

Applicable Industries and Customer Groups for Electrical Laminate Wood

Transformer manufacturers (oil-immersed/dry-type)

Power equipment companies

New energy industry (wind power/photovoltaic)

Motor and reactor manufacturing

Specific application scenarios:

Oil-immersed power transformers: Used as winding plates and yoke pads.

Reactors: Used as end insulation and clamp insulation.

On-load tap changers: Used as insulating cylinders and drive shafts.

High-voltage switchgear: Used as insulating partitions and support components.

Large motors: Used as slot wedges and end pads.

Why hoose a Multi-Specification Electrical Laminated Wood Supplier?

A mature laminate supplier should possess the following qualities:

Complete specification system (full range of thicknesses and dimensions)

CNC machining capabilities (high precision)

Stable raw material sourcing

Export experience (compliant with IEC standards)

These factors directly impact product consistency and cost control capabilities.

In today's increasingly competitive transformer market, reducing costs while maintaining product reliability is a core competitive advantage. Choosing multi-specification electrical laminate, combined with a direct-from-manufacturer sourcing model, can significantly optimize transformer insulation system costs.

If you are looking for a more cost-effective insulation solution, please feel free to contact us for samples or a customized quote.
