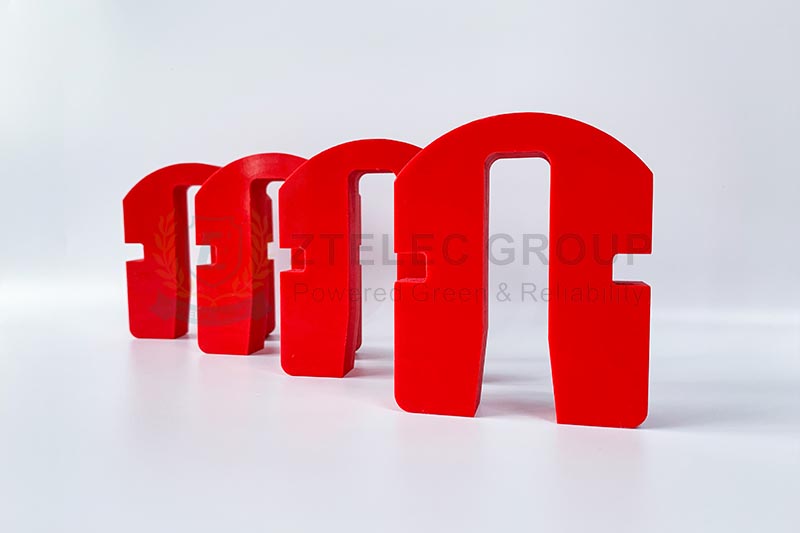

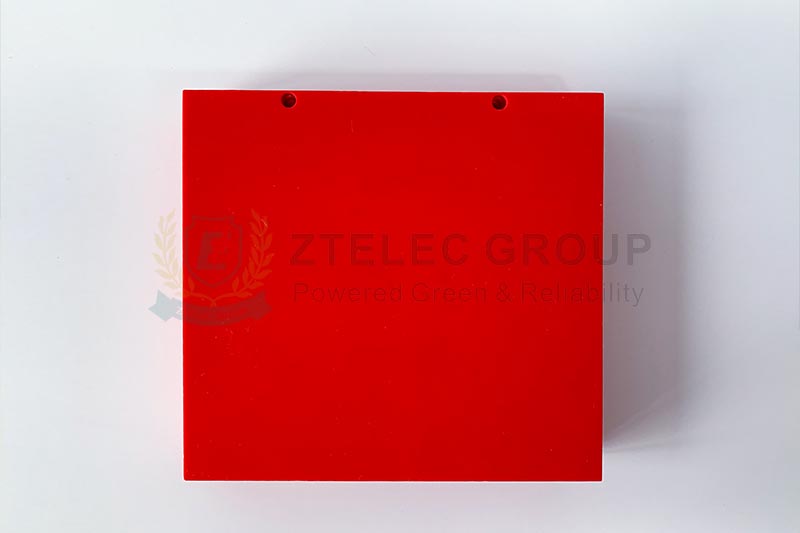

High-Precision GPO-3 Machined Parts for Busbar Supports

In power transmission and distribution systems and electrical switchgear, the reliability of busbar support systems directly impacts the safe operation of the power grid. As a core component of insulation support, GPO-3 machining parts, with their excellent mechanical properties and electrical withstand voltage characteristics, have become indispensable key components in medium and high voltage switchgear, transformers, and high-density busbar trunking. This article will explain in detail why high-precision GPO-3 machining parts are the ideal choice for modern electrical insulation solutions.

GPO-3: Why is it suitable for busbar support?

GPO-3 is a thermosetting laminate material formed by high-temperature and high-pressure curing of glass fiber-reinforced unsaturated polyester resin. In busbar support applications, it has three main core advantages:

1.Excellent Electrical Insulation Performance

The high dielectric strength of GPO-3 machining parts ensures safe isolation between conductive components.

2.Excellent Mechanical Strength

GPO-3 can withstand the weight and vibration of large busbar systems without deformation.

3.Excellent Heat Resistance and Flame Retardancy

Its UL 94 V-0 flame retardant rating means that the material is self-extinguishing when exposed to an electric arc caused by a short circuit, and will not contribute to the spread of fire.

GPO-3 Machined Components: High-Precision Manufacturing

The precision of busbar support components directly affects busbar alignment, dynamic stability withstand capability, and installation efficiency. If standard GPO-3 sheets are only roughly machined, the following issues commonly occur:

Burrs and Delamination:

Conventional milling processes tend to produce burrs around hole edges, which can distort the electric field and increase the risk of partial discharge.

Dimensional Deviations:

If the hole spacing tolerance exceeds 0.1 mm, bolts may not fit properly during on-site assembly, leading to installation stress. Over time, this can cause cracking of the insulation components.

Therefore, manufacturing high-precision GPO-3 machined parts requires strict process control:

CNC Machining Centers:

High-speed CNC equipment combined with specialized carbide cutting tools ensures smooth surfaces without delamination.

Tight Tolerance Control:

Critical mounting hole tolerances are controlled within ±0.05 mm, ensuring proper parallelism and perpendicularity after installation of multiple support components.

Deburring and Chamfering:

All edges are uniformly chamfered. This not only improves installation safety but also helps prevent tip discharge caused by sharp edges.

Typical Applications of GPO-3 Machined Components in Busbar Systems

Medium- and High-Voltage Switchgear (KYN28)

GPO-3 machined components are used as bushing plates or phase barriers, fixing the A, B, and C phase busbars inside the cabinet. With high precision, the busbars can align with the circuit breaker contact boxes without forced adjustment, significantly reducing contact resistance.

Compact Busway Systems

At busway joint connectors, GPO-3 machined parts serve as insulating barriers and support blocks, bearing substantial mechanical clamping forces. High flatness ensures uniform pressure distribution among multiple busbars, preventing localized overheating.

Transformer Outgoing Side

GPO-3 components are applied as zero-sequence current transformer supports and busbar clamps on both low-voltage and high-voltage sides. With its high mechanical strength, GPO-3 effectively supports heavy copper busbars and withstands the strong electrodynamic forces generated during short circuits.

How to Choose the Right GPO-3 Busbar Support Components？

When selecting GPO-3 machined parts, consider the following:

Ensure the thickness and mechanical strength meet busbar load requirements

Verify that the dielectric properties match the operating voltage

Confirm machining tolerance accuracy to ensure proper installation alignment

For international projects, prioritize UL- or IEC-certified GPO-3 materials

As the electrical industry continues to demand more compact designs, higher reliability, and longer service life, high-precision GPO-3 machined components for busbar support are no longer just auxiliary materials—they have become critical structural elements that ensure the dynamic and thermal stability of power systems.

Choosing a manufacturer with advanced precision machining capabilities and strict material quality control not only reduces on-site installation difficulty but also helps eliminate potential safety risks caused by insulation failure at the source.
