30mm-100mm Electrical Laminated Wood Available Now | SGS Testing Report Available

In the power transformer and high-voltage equipment manufacturing industry, electrical laminated wood is an important structural insulation material. Its performance and availability directly affect equipment safety and delivery time. 30mm-100mm thick electrical laminated wood is commonly used in the core structural components of large oil-immersed transformers. This places stringent requirements on material strength and insulation performance.

If you are looking for electrical laminated wood with readily available stock and SGS testing reports, the following will provide a detailed introduction to its advantages, application value etc.

Introduction to Electrical Laminated Wood

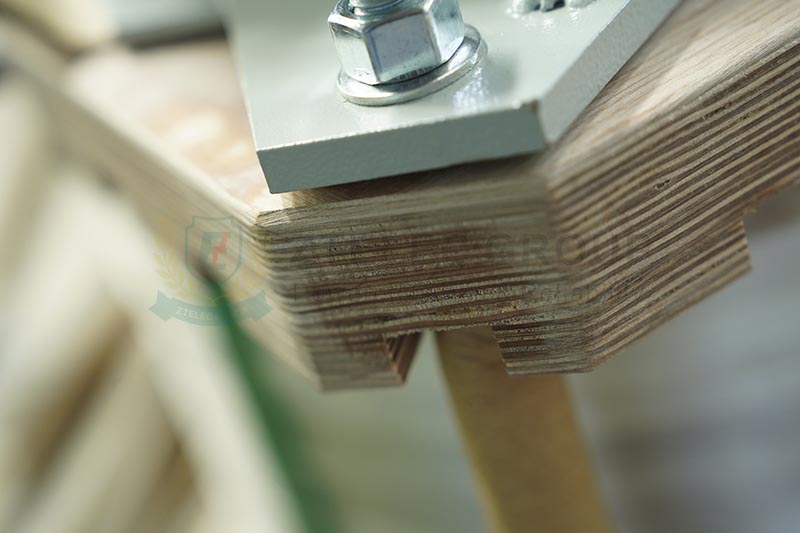

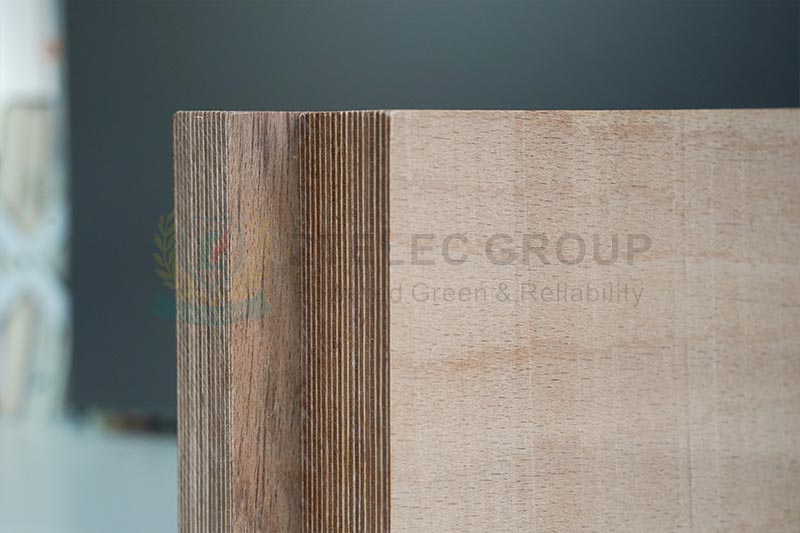

Electrical laminated wood is made from high-quality birch or beech veneers, impregnated with insulating resin, and then laminated under high temperature and pressure. It is a composite insulating material with excellent mechanical and electrical insulation properties.

Key Features:

High mechanical strength: Resistant to compression, bending, and impact

Excellent electrical insulation: High dielectric strength

Compatible with transformer oil

Stable size, resistant to deformation

Easy to be CNC machined into complex structural components

Widely used in transformer internal structural components and insulation support systems

30mm - 100mm Electrical Laminate Wood Supply

1. Full Specification Coverage

We understand that traditional customized production has long cycles and is difficult to meet sudden orders or repair needs. Therefore, we have established a comprehensive spot inventory system:

Thickness Range: Covering commonly used specifications such as 30mm, 40mm, 50mm, 60mm, 70mm, 80mm, 90mm, and 100mm.

Size Specifications: We offer standard sheet sizes (such as 1020*2040mm), and can also customize them according to customer requirements, facilitating precise cutting by CNC machining centers and enhancing material utilization.

2. Authoritative Certification for Electrical Laminate Wood: SGS Test Report

In high-voltage electrical applications, material stability is crucial. We promise that all batches of products come with an SGS test report. SGS is a globally renowned inspection, verification, testing, and certification company, and its reports have the following significance:

Electrical Strength Certification: Guaranteeing excellent breakdown resistance of the material under high-voltage environments.

Physicochemical Performance Verification: Rigorous testing of oil absorption, moisture content, and oil resistance ensures the material does not deform or age after long-term immersion in transformer oil.

Transparency and Traceability: Performance data for each batch of materials is publicly available, giving you peace of mind when purchasing.

3. Superior Mechanical and Electrical Properties

Compared to traditional insulating paperboard or epoxy glass cloth, electrical laminated wood offers unique advantages in specific applications:

High Mechanical Strength: The wood fiber structure provides excellent bending and compressive strength. It is suitable as a load-bearing structural component.

Excellent Dielectric Properties: Through a vacuum impregnation process, resin fully fills the fiber gaps, resulting in extremely high breakdown voltage in oil.

Good Compatibility with Transformer Oil: Special treatment ensures stable performance in oil and does not affect the dielectric loss factor of the transformer oil.

Applications of 30mm-100mm Thick  Electrical Laminate Wood

Thick laminate wood is commonly used in critical components that withstand significant mechanical and electrical stresses. Typical applications include:

Press Plates

Spacer Blocks

Clamping Structures

Lead Supports

Core Pads

In oil-immersed transformers, these components directly affect structural stability and insulation safety.

FAQs

Q: Are the 30mm-100mm thick sheets in stock whole boards or pre-cut?

A: We offer whole boards in stock, or we can precision cut them according to your drawings to reduce processing waste.

Q: Is the SGS test report for each batch?

A: Yes. We implement batch management, and each batch of materials arriving at our warehouse undergoes rigorous sampling and testing. We commission SGS to issue authoritative test reports to ensure stable product performance.

Q: Does electrical laminate wood meet international environmental standards?

A: Yes. Our electrical laminate wood is made with environmentally friendly phenolic resin, meeting both electrical performance requirements and international environmental directives such as RoHS.

In today's power equipment manufacturing industry, delivery time and quality are equally important. Choosing a supplier with the following capabilities can significantly improve project success rates:

30mm - 100mm thickness in stock

Complete SGS testing reports

Custom processing available

Compliance with IEC international standards

Electrical laminate wood is fundamental to the safe operation of transformers.

Welcome to inquire for the latest pricing and stock information for 30mm - 100mm electrical laminate wood!
