3500kVA Dry-Type Transformer: Technical Specifications, Design Features, and Application Scenarios

In modern industrial power distribution systems and large-scale commercial facilities, the 3500kVA dry-type transformer represents an optimal balance between capacity, safety, and operational efficiency. Compared with standard 1600kVA–2500kVA units, it delivers higher power output to support centralized loads, while avoiding the complexity and cost of advanced cooling systems typically required for transformers above 4000kVA.

This article provides a comprehensive overview of the key technical parameters, structural characteristics, and typical application scenarios of 3500kVA dry-type transformers, offering practical guidance for engineers, consultants, and procurement professionals.

What is a 3500kVA Dry-Type Transformer?

A 3500kVA dry-type transformer refers to a transformer with a rated apparent power of 3500 kilovolt-amperes (kVA), indicating its maximum continuous output capacity under standard operating conditions.

In practical applications, this capacity typically supports load demands ranging from approximately 2800kW to 3150kW, depending on the system power factor.

Dry-type transformers utilize epoxy resin cast or vacuum pressure impregnated (VPI) windings and rely on air for cooling. This design ensures enhanced fire resistance, environmental safety, and suitability for indoor installation, particularly in sensitive or high-density environments.

Key Technical Parameters of 3500kVA Dry-Type Transformers

Understanding the technical specifications is critical for proper selection and system integration. Typical parameters include:

Rated Capacity: 3500 kVA

Rated Voltage:
High Voltage: 10kV / 11kV / 20kV (customizable)
Low Voltage: 0.4kV / 0.415kV
Tap Changer Range: ±2×2.5% or ±5%

Frequency: 50Hz or 60Hz

Vector Group: Dyn11 or Yyn0 (depending on system design)

Insulation Class: F or H
Temperature Rise Limit: F class (100K), H class (125K) at 40°C ambient

Cooling Method:
AN (Air Natural Cooling)
AF (Air Forced Cooling, allowing temporary overload capacity)

Energy Efficiency:
Designed to meet international energy efficiency standards with reduced no-load and load losses, ensuring lower lifecycle operating costs.

Protection Degree:
Commonly IP20 or IP23, with higher ratings available for demanding environments.

Structural and Performance Advantages

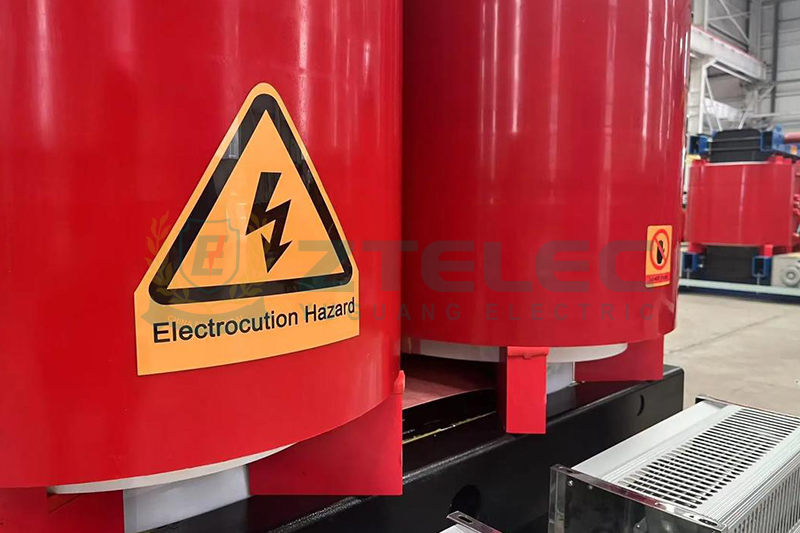

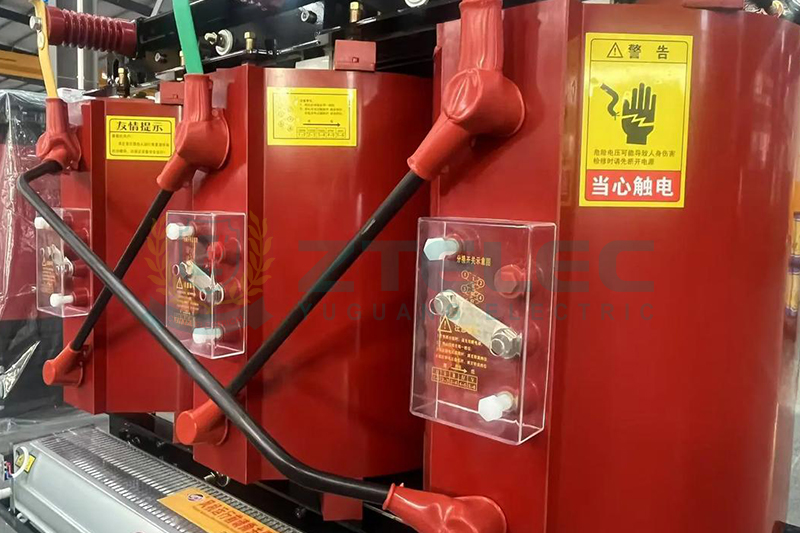

3500kVA dry-type transformers are engineered with advanced insulation materials and optimized electromagnetic design, providing excellent thermal stability and mechanical strength. The compact structure allows flexible installation in confined indoor spaces, while the absence of insulating oil eliminates fire hazards and reduces maintenance requirements.

Additionally, these transformers offer strong short-circuit resistance and stable performance under fluctuating loads, making them highly reliable in mission-critical applications.

Typical Application Scenarios

Commercial Buildings and High-Rise Complexes

In high-rise buildings, transformers are often installed on intermediate equipment floors to minimize voltage drop. A 3500kVA dry-type transformer can efficiently supply power to HVAC systems, elevators, lighting, and fire protection systems, while meeting strict fire safety and low-noise requirements.

Industrial Manufacturing Facilities

For industrial parks and medium-sized factories with total loads between 3000kW and 4000kW, 3500kVA transformers provide an ideal centralized power solution. They support both single-unit operation and parallel configurations, and are widely used in production lines, processing equipment, and auxiliary systems.

Data Centers

Data centers require highly reliable and stable power supply systems. A 3500kVA dry-type transformer is commonly deployed as a primary distribution transformer feeding UPS or ATS systems. It helps optimize energy efficiency while allowing capacity expansion without excessive initial investment.

Infrastructure and Rail Transit

In infrastructure projects such as subway stations, airports, and rail transit systems, 3500kVA transformers are used to supply power for ventilation, lighting, escalators, and auxiliary systems. Their ability to handle short-term overloads and dynamic load changes ensures continuous operation in demanding environments.

Selection Guidelines for 3500kVA Dry-Type Transformers

When selecting a 3500kVA dry-type transformer, it is essential to evaluate several key factors:

Define load characteristics, including continuous or fluctuating operation
Select appropriate cooling method (AN or AF) based on load profile
Determine protection level according to installation environment
Compare no-load and load losses to assess long-term efficiency
Choose a manufacturer with proven experience in large-capacity transformer production
Ensure availability of complete technical documentation and type test reports

The 3500kVA dry-type transformer offers an excellent combination of capacity, safety, and operational efficiency. Its oil-free design, low maintenance requirements, and adaptability to diverse environments make it a preferred solution for industrial, commercial, and infrastructure power systems.

By carefully evaluating technical parameters and application requirements during the planning phase, users can achieve optimal performance, reliability, and cost-effectiveness.

For detailed specifications, customization options, or project support, feel free to contact our engineering team.
