550kVA Dry-Type Transformer for Industrial Plants | Safe and Reliable Power Supply

Stable power supply is essential for modern industrial plants. Power interruptions or voltage instability can directly affect production efficiency, equipment performance, and operating costs. For many factories, selecting a reliable transformer is a key step in building a stable power distribution system.

The 550kVA dry-type transformer is widely used in industrial facilities because of its high safety, low maintenance requirements, and environmentally friendly design. With a moderate capacity and stable performance, it is suitable for medium-sized manufacturing plants, machining workshops, and automated production lines.

This article explains the features, specifications, advantages, and industrial applications of a 550kVA dry-type transformer, helping engineers and procurement managers choose the right solution for factory power distribution.

What Is a 550kVA Dry-Type Transformer?

A 550kVA dry-type transformer is a medium-capacity transformer used to convert medium-voltage electricity from the power grid into low-voltage power for industrial equipment. It is commonly installed in factory distribution rooms, production workshops, and indoor substations.

Unlike oil-immersed transformers, dry-type transformers use air or epoxy resin insulation instead of transformer oil. This design eliminates the risk of oil leakage and greatly improves fire safety, making the transformer suitable for indoor environments and locations with strict safety requirements.

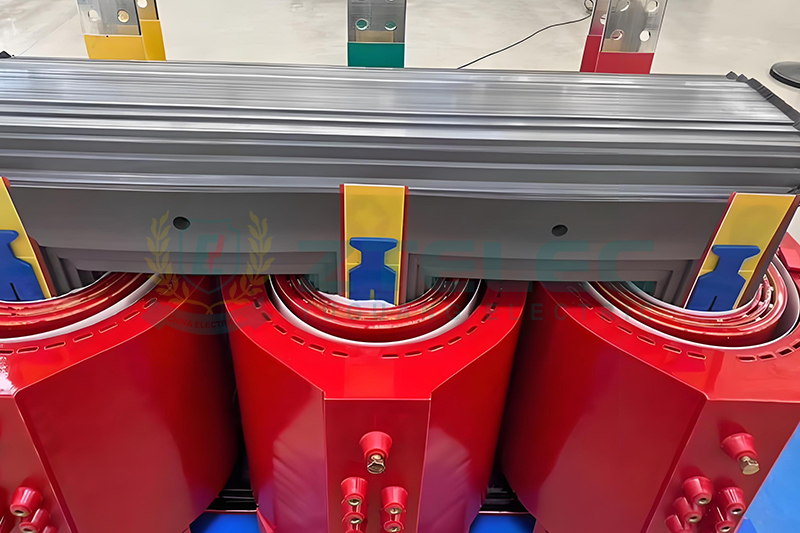

Typical Technical Specifications

Rated Capacity: 550kVA

Primary Voltage: 10kV / 11kV / 20kV

Secondary Voltage: 400V / 415V / 480V

Frequency: 50Hz or 60Hz

Cooling Method: Natural Air Cooling (AN) or Forced Air Cooling (AF)

Insulation Class: F Class or H Class

Standards: IEC 60076, ANSI, GB

These specifications allow the transformer to meet the requirements of industrial power systems in different countries and regions.

Main Advantages of a 550kVA Dry-Type Transformer

High Safety

Dry-type transformers operate without insulating oil. This eliminates the risk of oil leakage and fire hazards. As a result, they are widely used in factories, commercial buildings, and indoor power distribution rooms.

Low Maintenance

Oil-filled transformers require regular oil testing and maintenance. Dry-type transformers do not require oil management, which significantly reduces maintenance costs and simplifies long-term operation.

Environmentally Friendly

Because they do not use oil, dry-type transformers avoid environmental contamination. They also operate with relatively low noise levels, making them suitable for modern industrial environments.

Compact Design

550kVA dry-type transformers are designed with a compact structure. This allows flexible installation in limited spaces such as factory substations, electrical rooms, or production buildings.

Reliable Operation

With technologies such as epoxy resin casting or VPI insulation, dry-type transformers provide strong insulation performance and mechanical strength. This ensures stable operation even in demanding industrial environments.

Applications in Industrial Plants

The 550kVA dry-type transformer is mainly used to step down medium-voltage electricity from the grid to low-voltage power used by factory equipment and building systems.

Production Equipment Power Supply

Industrial machines such as CNC equipment, motors, welding machines, and automated production lines require stable and continuous power. A 550kVA transformer can provide reliable electricity for these systems.

Factory Power Distribution

Many factories receive power at medium voltage levels such as 10kV or 11kV. A dry-type transformer converts this voltage into 380V or 400V for internal plant distribution.

Lighting and Auxiliary Systems

Factory lighting, ventilation, air conditioning, and safety systems depend on stable low-voltage power supplied through the plant transformer.

Automated Production Lines

Modern manufacturing uses robotic systems, conveyors, and automated packaging equipment. These systems require stable voltage to operate efficiently.

Industrial Park Power Supply

In small and medium-sized industrial parks, a 550kVA transformer can supply electricity to several workshops or production units.

Key Factors When Selecting a 550kVA Dry-Type Transformer

When choosing a transformer for an industrial plant, several technical factors should be considered to ensure safe and efficient operation.

Insulation Class

Transformers with H-class insulation are recommended for factories operating under high temperature conditions or heavy load environments.

Protection Level

If the transformer is installed in a dusty workshop or outdoor environment, enclosures with protection ratings such as IP20, IP23, or IP40 should be selected.

Voltage Configuration

The primary voltage must match the local grid voltage, while the secondary voltage should match the factory distribution system, usually 380V or 400V.

Cooling Method

Transformers with AN/AF cooling modes provide additional reliability. Forced air cooling helps maintain stable operation during peak loads or high ambient temperatures.

The 550kVA dry-type transformer is an efficient and reliable solution for industrial power distribution. Its high safety, low maintenance, and environmentally friendly design make it a preferred choice for modern factories and industrial facilities.

By selecting the right transformer configuration and ensuring proper installation, industrial plants can achieve stable power supply, improved energy efficiency, and long-term operational reliability.
