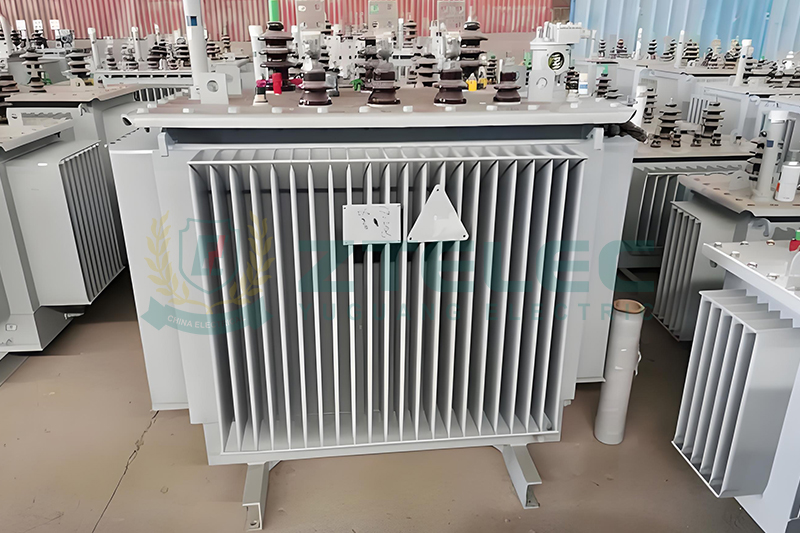

Best 1250kVA 35kV Oil-Cooled Transformer for Industrial Power Distribution

In heavy industry, infrastructure projects, and large-scale facilities, stable power supply is essential for maintaining production efficiency and operational safety. The 1250kVA 35kV oil-cooled transformer plays a critical role in connecting medium-voltage distribution networks to low-voltage power systems. It is widely used in industrial plants, mining operations, renewable energy projects, and large commercial power distribution systems.

Whether powering a manufacturing facility or supporting voltage transformation in renewable energy projects, selecting the right transformer is crucial. An improperly selected transformer can result in reduced power efficiency, higher operating costs, increased maintenance frequency, and even unexpected shutdowns. Therefore, understanding the key technical parameters and application requirements is vital when choosing a suitable transformer.

Key Features of a 1250kVA 35kV Oil-Cooled Transformer

The 1250kVA 35kV oil-cooled transformer is typically manufactured using high-quality silicon steel cores and mineral insulating oil. This design ensures reliable performance in demanding industrial environments. Modern transformers incorporate advanced manufacturing technologies to improve efficiency, reduce losses, and enhance operational stability.

One of the main advantages of this transformer type is its excellent heat dissipation capability. The oil-cooled system efficiently transfers heat generated during operation, allowing the transformer to operate under continuous heavy loads without overheating.

Another important feature is its high energy efficiency. By using low-loss silicon steel sheets and optimized winding structures, no-load losses and load losses are significantly reduced, which helps lower long-term electricity costs for industrial facilities.

Industrial environments often experience fluctuating loads. Therefore, these transformers are designed with strong overload capacity, enabling them to handle peak load demands while maintaining stable performance and voltage output.

Additionally, modern structural designs and optimized oil circulation systems help achieve low noise operation, making the transformer suitable for industrial parks and urban power distribution systems where environmental standards must be met.

Key Technical Parameters of a 1250kVA 35kV Oil-Cooled Transformer

When selecting a transformer for industrial power distribution projects, engineers and procurement managers should carefully evaluate several important technical parameters to ensure reliable performance and compatibility with the local power grid.

Voltage Combination and Tap Range

The typical high-voltage rating for this transformer is 35kV. Depending on grid requirements, alternative voltage levels such as 34.5kV or 38.5kV may also be used.

The standard low-voltage output is 0.4kV (400V) three-phase, which is commonly used for industrial equipment and facility distribution systems. However, customized outputs such as 6.3kV or 10.5kV can also be designed for specific applications.

Tap changers allow voltage adjustment to compensate for grid fluctuations. For industrial zones with unstable voltage conditions, an on-load tap changer is recommended because it can regulate voltage without interrupting the power supply.

Connection Group

The commonly used connection group for industrial transformers is Dyn11. This configuration effectively suppresses third-harmonic currents and provides a neutral point for single-phase loads, which is essential for many industrial power systems.

Losses and Energy Efficiency

Energy efficiency is a key factor affecting the operating cost of a transformer. High-quality transformers typically comply with international standards such as IEC 60076 or national energy efficiency regulations.

No-load loss is mainly related to the transformer core material. High-permeability silicon steel cores can significantly reduce energy loss during idle operation. Load loss depends largely on the winding material and structure. Copper windings are commonly used in industrial transformers due to their excellent electrical conductivity and strong mechanical strength.

Insulation Level

For 35kV transformers, insulation performance must meet strict requirements. Lightning impulse withstand voltage and power-frequency withstand voltage should comply with standards such as IEC 60076 or IEEE C57.12.00 to ensure safe operation during lightning strikes or grid disturbances.

Application Scenarios of 1250kVA 35kV Oil-Cooled Transformers

The 1250kVA 35kV oil-cooled transformer is widely used in industrial power systems that require stable voltage, high reliability, and continuous operation.

In large manufacturing plants, it is typically installed in the main power distribution room to supply electricity to production lines and heavy machinery. Equipment such as welding machines, compressors, and injection molding machines often require stable high-capacity power sources, making this transformer size a common choice.

Industrial parks also use these transformers to provide centralized power distribution for multiple factories and facilities. By maintaining stable voltage output, the transformer helps reduce the impact of load fluctuations on sensitive equipment.

Other applications include mining operations, construction sites, and renewable energy projects where reliable power transformation is essential even under harsh environmental conditions.

Industry-Recognized Transformer Brands and Manufacturers

Several well-known global manufacturers produce high-quality industrial transformers. Companies such as Siemens, ABB (now part of Hitachi Energy), and Schneider Electric are widely recognized for their advanced technology and reliable products. Some models from these manufacturers also include intelligent monitoring systems for real-time operational analysis.

Other international manufacturers, including Eaton and General Electric, have extensive experience in industries such as petrochemical processing, mining, and infrastructure development.

In recent years, many Chinese transformer manufacturers have significantly improved their production technology and quality control systems. Companies such as TBEA, XD Electric, Huapeng, and Qianjiang Electric offer competitive products with strong cost-performance advantages.

In addition, specialized manufacturers like Ztelec provide customized transformer solutions for global industrial projects. These manufacturers often offer flexible voltage configurations, shorter delivery times, and direct factory pricing. Their services may also include technical consultation, factory testing reports, certification documentation, and comprehensive after-sales support.

How to Choose the Right 1250kVA 35kV Transformer

When selecting a transformer for industrial power distribution, several factors should be considered carefully. These include voltage compatibility with the local grid, required capacity, installation environment, cooling method, energy efficiency rating, and long-term maintenance requirements.

Choosing a reliable manufacturer that provides quality certification, factory testing reports, and technical support can greatly improve the safety and reliability of the power system.

Request a Quote or Technical Consultation

If your project requires a 1250kVA 35kV oil-cooled transformer, consulting with experienced engineers can help determine the most suitable configuration for your application. Professional manufacturers can provide customized solutions, detailed technical specifications, and energy efficiency data to ensure your power distribution system operates safely and efficiently.
