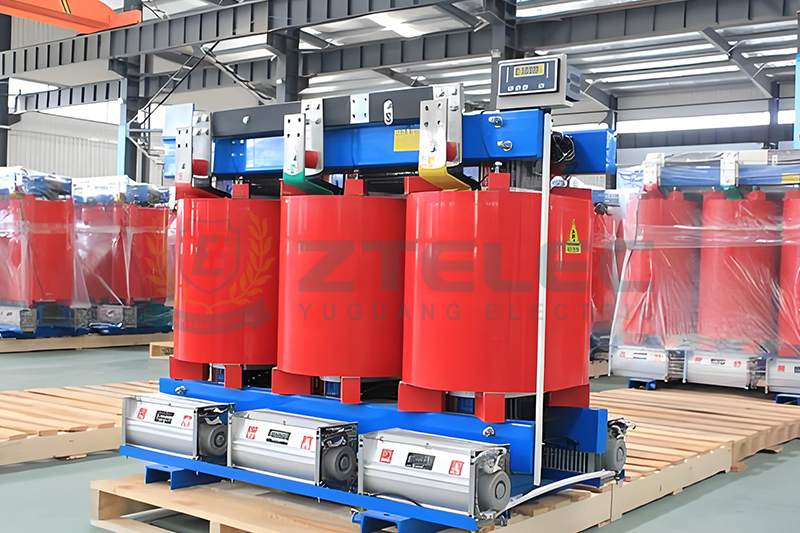

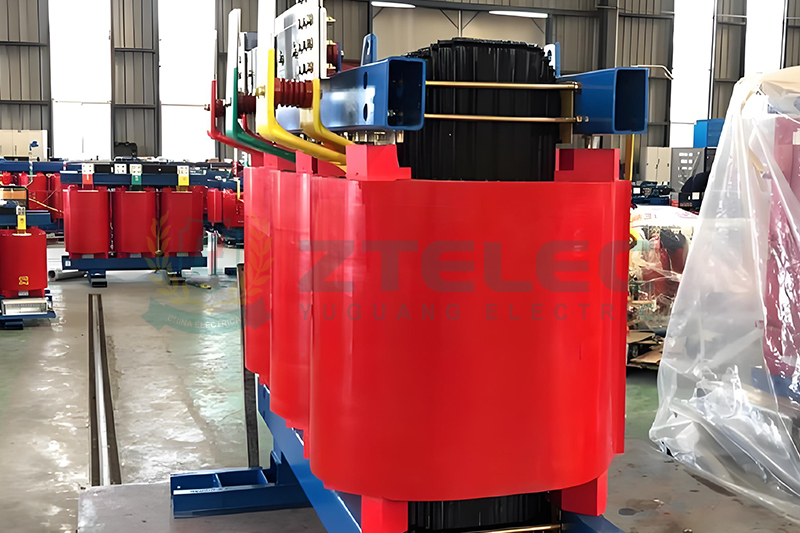

1600kVA Dry Type Step Down Transformer – IEC Certified | Sandstorm Resistant & IP65 Enclosure

In extreme environments such as deserts, coastal areas with high salt mist, and heavily polluted industrial zones, reliable power equipment is critical for the operational safety of projects. For applications requiring high-to-low voltage conversion, a transformer with high protection rating, international certification, and large capacity is essential.

This article highlights the core technical advantages of a 1600kVA dry-type step-down transformer and explains how it withstands harsh global environments through IEC certification, sandstorm-resistant design, and IP65-rated enclosure.

Applications of 1600kVA Dry-Type Step-Down Transformer

A 1600kVA transformer can meet the load demands of medium-sized factories, large commercial complexes, data centers, photovoltaic power plants, and mining operations.

Advantages over Oil-Immersed Transformers

Compared to oil-immersed transformers, cast resin dry-type transformers offer multiple benefits:

High Safety: No risk of oil leakage, eliminating fire hazards.

Maintenance-Free: No need for oil level checks or filtration.

Environmentally Friendly: Fully compliant with global environmental regulations and recyclable.

Easy Installation: Can be installed close to the load center, reducing line losses.

Full IEC Certification

Compliance with international standards is critical for global projects. Our 1600kVA dry-type transformers meet IEC 60076-11 and related IEC 60076 series standards.

Certifications and Key Tests

Temperature Rise Test: Limits controlled per IEC standards to ensure insulation longevity under full-load operation.

Insulation Class: Class H (180°C) or Class C (220°C) insulation materials provide excellent thermal resistance and shock tolerance.

Partial Discharge Measurement: Partial discharge kept below 10 pC at 1.1 times rated voltage, ensuring insulation reliability.

Short-Circuit Withstand: Proven ability to withstand three-phase symmetrical short-circuit on the grid or load side without deformation.

IEC certification ensures acceptance in major international markets including Europe, Southeast Asia, the Middle East, Africa, and South America, and compliance with EPC turnkey project standards.

Sandstorm-Resistant Design

Standard dust-proof designs are insufficient in regions with frequent sandstorms such as the Middle East, Sahara, or Gobi Desert. Key features of our 1600kVA transformer include:

Fully Sealed Structure: Prevents fine sand particles from entering critical components.

Multi-Layer Dust Filtration System (Optional): Filters airborne particles while maintaining airflow.

Optimized Cooling Air Ducts: Ensures efficient heat dissipation even in dusty environments.

IP65 High-Protection Enclosure

Unlike conventional dry-type transformers with IP20 or IP23 ratings, this transformer features a standard IP65 enclosure, providing complete protection against dust and water:

Complete Dust Protection: IP6X rating fully prevents fine dust ingress during sandstorms.

Water Jet Resistance: IPX5 protects against water jets from any direction, suitable for industries with regular high-pressure cleaning.

Corrosion Resistance: Enclosure made from high-quality cold-rolled steel or 304 stainless steel with outdoor-grade powder coating, resisting UV aging and salt spray.

FAQs

Q: Will an IP65 enclosure affect heat dissipation?
A: No. Aerodynamic design and efficient heat exchange systems maintain temperature rise within safe limits. Optional forced air cooling (AF) can be added for full-load 1600kVA operation using axial fans.

Q: Can this transformer be installed directly outdoors?
A: Yes. With IP65 enclosure and UV-resistant coating, it can be installed outdoors on the ground or platforms without a dedicated distribution room, reducing civil construction and installation costs.
