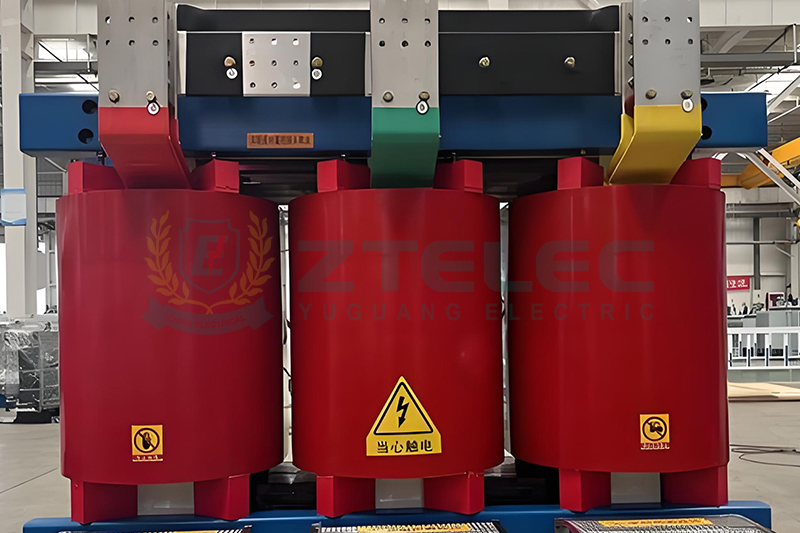

33kV to 11kV Dry Type Step Down Transformer Manufacturers – Industrial & Utility Projects

The 33kV to 11kV dry-type step-down transformer plays a critical role in connecting high-voltage transmission systems with medium-voltage distribution networks. It ensures efficient voltage conversion while maintaining the safety, reliability, and continuity of power supply across industrial facilities and utility infrastructure.

For applications such as manufacturing plants, data centers, hospitals, and municipal grids, selecting a dependable transformer manufacturer is essential. A high-quality dry-type transformer not only improves operational stability but also reduces maintenance risks and long-term costs.

Technical Specifications and Manufacturing Standards

As a professional manufacturer of 33kV/11kV dry-type transformers, all products are designed and produced in accordance with international standards such as IEC, ANSI, and GB. Each unit is engineered to perform reliably in demanding environments, including high humidity, high altitude, and heavy-load industrial conditions.

Typical Parameter Configuration

Rated Capacity: 500kVA to 20MVA, customizable based on project requirements.
High Voltage: 33kV ±2×2.5% tap changer.
Low Voltage: 11kV or 6.6kV options available.
Connection Group: Dyn11 or YNyn0 depending on grounding design.
Insulation Class: Class F (155°C) or Class H (180°C).
Cooling Method: AN (air natural) or AF (forced air), with up to 40% capacity increase under forced cooling.
Core Material: High-grade grain-oriented silicon steel (M3/M4) or energy-efficient amorphous alloy.

Advanced Manufacturing Process

Vacuum epoxy resin casting technology is applied to high-voltage windings, effectively eliminating air gaps and minimizing partial discharge levels to below 5pC. This significantly enhances insulation strength and extends service life beyond 30 years.

Low-voltage windings utilize copper foil winding technology, improving mechanical strength and ensuring excellent resistance to short-circuit forces. This design enhances operational safety under sudden load fluctuations.

Key Advantages of Dry-Type Step-Down Transformers

High Reliability and Safety

Dry-type transformers use flame-retardant, environmentally friendly insulation materials without oil, eliminating fire and leakage risks. The robust structure ensures excellent short-circuit withstand capability and long-term stable operation.

Efficient Heat Dissipation

With flexible cooling methods including natural air cooling and forced air cooling, these transformers can operate efficiently in high-temperature or high-altitude environments without performance degradation.

Low Partial Discharge

Partial discharge levels are typically maintained below 10pC, reducing insulation aging and significantly improving equipment lifespan and reliability.

Application Scenarios

Industrial Power Distribution

Widely used in industries such as manufacturing, mining, metallurgy, and petrochemicals, where 33kV transmission systems are stepped down to 11kV for equipment operation and production lines.

Typical installations include factory substations, industrial parks, and automated production systems requiring stable and continuous power supply.

Utility and Infrastructure Projects

In urban power grids and public infrastructure, these transformers are essential for medium-voltage distribution. They are commonly deployed in substations, metro systems, hospitals, data centers, and commercial complexes.

Renewable Energy Systems

With the rapid growth of solar and wind energy, 33kV to 11kV dry-type transformers are widely used in renewable energy integration, including photovoltaic plants, wind farms, and energy storage systems.

Why Choose a Professional Transformer Manufacturer

Selecting an experienced manufacturer ensures not only product quality but also technical support, customization capability, and reliable delivery schedules. A proven supplier can help optimize system design, reduce lifecycle costs, and guarantee long-term performance.

Frequently Asked Questions

How does the cost compare to oil-immersed transformers?

Dry-type transformers typically have an initial cost that is 20%–30% higher. However, savings in installation, fire protection, and maintenance often result in lower total ownership costs within 5–8 years.

Can dry-type transformers operate in humid environments?

Yes. Cast resin transformers offer excellent moisture resistance. For high-humidity environments, enclosures rated IP23 or above, along with temperature and humidity control systems, are recommended.

What is the delivery time?

Standard models are typically delivered within 6–8 weeks. Customized solutions may require 12–14 weeks depending on technical specifications and project complexity.
