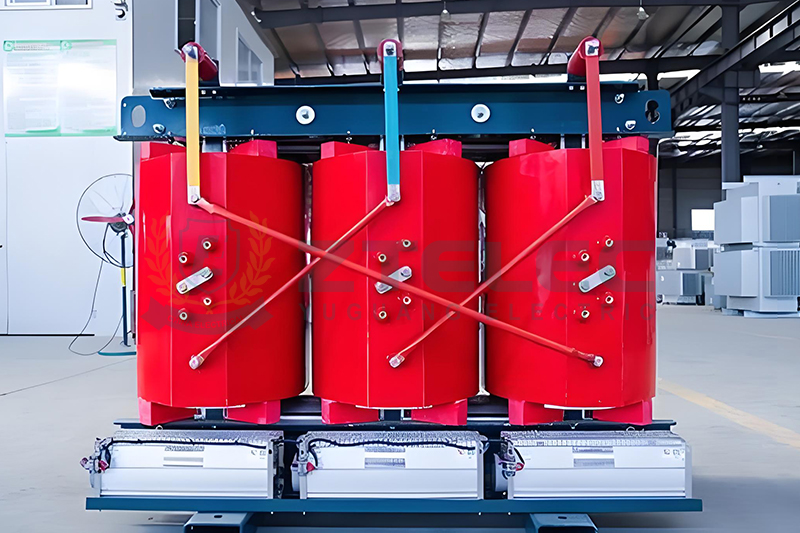

IEC 60076: 2000kVA Dyn11 Cast Resin Dry Type Transformers for Grid & Data Center Projects

In modern power grid construction and high-density digital infrastructure, transformer reliability and safety are essential for ensuring uninterrupted power supply. Data centers, industrial plants, and large commercial complexes require equipment that complies with international standards while delivering high efficiency and operational stability. The 2000kVA Dyn11 cast resin dry type transformer designed in accordance with IEC 60076 has become a preferred solution for these demanding applications.

This article analyzes the engineering advantages, technical standards, and selection considerations of IEC 60076 compliant 2000kVA Dyn11 cast resin dry type transformers used in power grid engineering and data center power distribution systems.

Engineering Advantages of Cast Resin Dry Type Transformers

Compared with traditional oil-immersed transformers, cast resin dry type transformers provide enhanced fire safety, environmental protection, and reliability. These features are especially important for installations inside buildings or in sensitive infrastructure such as data centers.

Fire safety is a primary concern for facilities containing high-value equipment. Cast resin windings are self-extinguishing and exhibit strong flame retardant characteristics. They do not release toxic gases during combustion, which significantly improves operational safety and reduces risk in confined environments.

Short-circuit resistance is another major advantage. The vacuum casting process forms a rigid coil structure that enhances mechanical strength and thermal stability. In the event of sudden short-circuit faults, the winding deformation risk is minimized, ensuring continuous power supply and reducing downtime.

Moisture resistance and environmental adaptability further improve performance. The epoxy resin insulation layer has low moisture absorption and maintains dielectric strength even in high humidity environments. This makes the transformer suitable for prefabricated substations, underground installations, and coastal regions.

IEC 60076 Standard Compliance for 2000kVA Transformers

The IEC 60076 standard is a globally recognized guideline covering transformer design, testing, and operational requirements. A 2000kVA Dyn11 cast resin dry type transformer built according to this standard ensures consistent performance and reliability across international power systems.

The insulation system must meet strict power frequency and lightning impulse withstand voltage requirements. This ensures safe operation under grid disturbances and transient overvoltages.

Temperature rise limits are tightly controlled under IEC specifications. For a 2000kVA transformer operating at high load levels, maintaining acceptable hot-spot temperatures is critical to extending insulation life and improving long-term reliability.

Partial discharge performance is also regulated. High-quality cast resin dry type transformers typically control partial discharge levels below 10pC. For sensitive applications such as data centers, even lower values provide improved insulation integrity and prevent unexpected failures.

Technical Advantages of Dyn11 Connection Structure

The Dyn11 vector group provides excellent harmonic suppression by reducing third harmonic components generated by nonlinear loads. This helps maintain stable voltage quality for IT equipment and automation systems.

The grounded neutral point on the low-voltage side enhances system safety and simplifies protection coordination. It also improves operational stability during fault conditions.

The Dyn11 configuration adapts well to unbalanced loads. This makes the transformer suitable for mixed single-phase and three-phase applications such as commercial buildings, EV charging stations, and data center auxiliary loads.

Applications in Grid and Data Center Projects

With increasing computing demand, data center rack power density continues to rise. The 2000kVA capacity level provides an ideal balance between scalability and redundancy. It can serve as a primary or backup transformer and matches well with diesel generator sets in 1+1 or 2N redundancy architectures.

In power grid engineering, 2000kVA is a widely used capacity for 10kV/0.4kV distribution substations. It supports medium-sized commercial complexes, industrial parks, and urban infrastructure projects requiring stable and efficient power distribution.

Selection Recommendations for Different Applications

For grid engineering projects, low loss performance should be prioritized to reduce lifecycle operating costs. Short-circuit withstand capability and dynamic stability are also important to handle grid fluctuations. Enclosure protection ratings such as IP31 or higher are commonly required for indoor installations.

For data center applications, partial discharge levels are critical. Transformers with factory-tested PD levels below 5pC are recommended to ensure long-term insulation reliability. Temperature rise margin is also important because data centers operate at high continuous load factors.

Noise control is another key consideration. Typical requirements limit sound levels to approximately 55dB at close distance to meet server room and office environment standards. Intelligent monitoring compatibility should also be considered, including interfaces for temperature sensors and remote monitoring systems.

The IEC 60076 compliant 2000kVA Dyn11 cast resin dry type transformer offers excellent fire safety, strong short-circuit resistance, and reliable performance for both power grid and data center applications. By selecting equipment designed to international standards and optimized for specific project requirements, operators can improve system reliability while reducing operational risks.

Choosing a reliable manufacturer ensures consistent product quality, competitive pricing, and professional technical support. Factory direct supply also allows customized solutions tailored to grid infrastructure, data center redundancy architecture, and industrial distribution systems.
