Application of 11/0.415 kV Oil-Filled Sealed Distribution Transformers in Factory Power Systems

In modern factory power infrastructure, the 11/0.415 kV oil-filled sealed distribution transformer plays a critical role in ensuring stable and efficient power supply. Acting as the key connection between the medium-voltage public grid (11 kV) and low-voltage production equipment (415 V), the operational reliability of this transformer directly affects production continuity, equipment safety, and overall energy efficiency.

This article analyzes the advantages of 11/0.415 kV oil-filled sealed transformers in industrial environments and highlights important technical selection considerations for building efficient and reliable factory power systems.

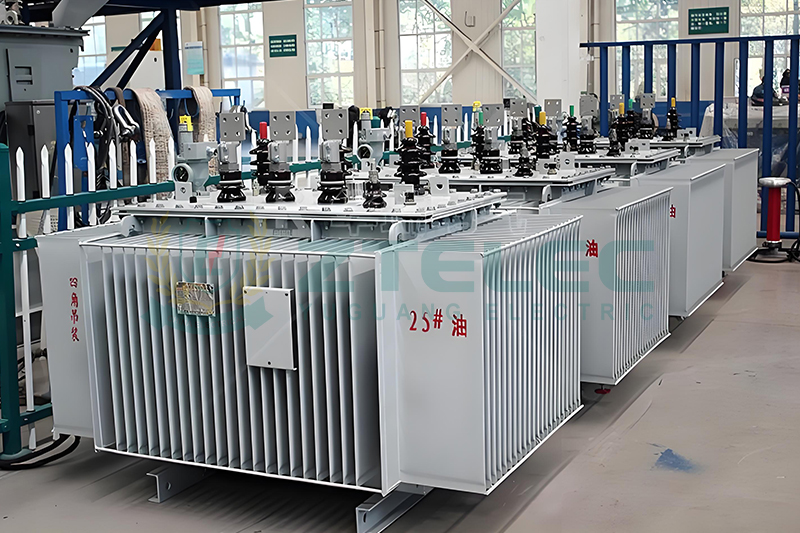

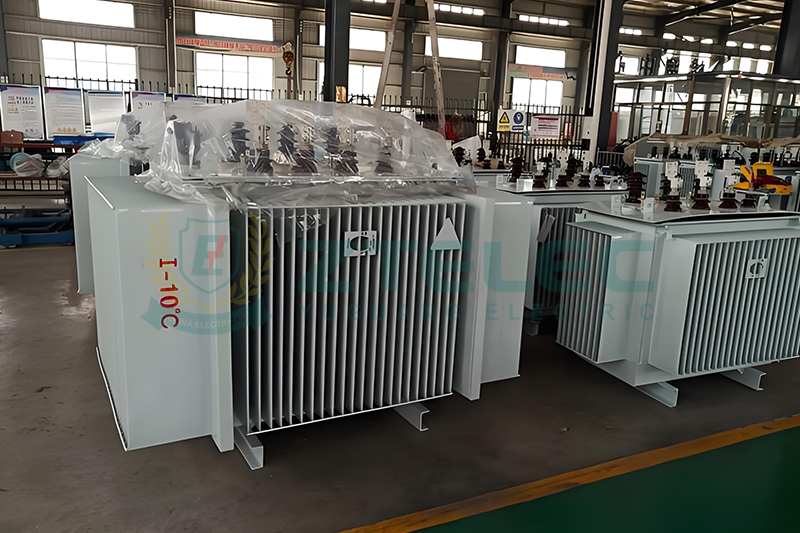

Overview of 11/0.415 kV Oil-Filled Sealed Distribution Transformer

The 11/0.415 kV distribution transformer steps down medium-voltage electrical power to low-voltage levels suitable for factory equipment. The oil-filled sealed design uses transformer oil as both insulation and cooling medium while maintaining a completely sealed tank structure. This prevents air and moisture ingress, reduces insulation aging, and supports long-term stable operation with minimal maintenance.

This structural design makes the transformer particularly suitable for complex industrial environments with dust, humidity, and continuous load variations.

Role of Distribution Transformers in Factory Power Systems

A typical factory power supply structure follows the sequence: grid power at 11 kV is delivered to a distribution transformer, stepped down to 0.415 kV, and then distributed through low-voltage switchgear to production equipment. The 11/0.415 kV transformer performs both voltage conversion and energy distribution functions within this system.

It provides stable low-voltage power for motors, automated production lines, and auxiliary equipment. It also reduces safety risks associated with direct medium-voltage usage and improves overall power utilization efficiency.

Advantages of 11/0.415 kV Oil-Filled Sealed Transformers in Factory Applications

Adaptability to Harsh Industrial Environments

Factory environments often contain metallic dust, chemical vapors, and high humidity. The sealed oil-filled structure prevents external contaminants from entering the transformer tank. This protects insulating oil quality, reduces insulation degradation, and minimizes the risk of short-circuit faults caused by environmental factors.

Strong Overload Capability

Industrial loads such as large motors, electric furnaces, compressors, and stamping equipment generate high inrush currents. Oil-filled transformers have higher thermal capacity and superior heat dissipation compared to dry-type units. This allows them to handle short-term overloads while maintaining insulation integrity and ensuring uninterrupted production.

Energy Efficient Operation

Modern 11/0.415 kV oil-filled sealed transformers use high-permeability silicon steel cores or amorphous alloy materials to reduce no-load and load losses. For factories operating continuously, this high-efficiency design significantly lowers electricity consumption over the transformer lifecycle and improves energy utilization.

Low Maintenance Requirements

The fully sealed tank prevents insulating oil from contacting outside air, eliminating the need for frequent oil replacement or silica gel maintenance. Routine inspection of oil level indicators, temperature gauges, and pressure relief devices is typically sufficient to ensure long-term reliable operation.

Key Technical Parameters for Transformer Selection in Factory Power Systems

Rated Capacity

The transformer capacity should be selected based on total factory load. Maintaining a load rate between 70% and 85% is recommended to balance efficiency, future expansion, and equipment lifespan.

Impedance Voltage

Impedance voltage affects short-circuit current levels and voltage stability. For factories with large impact loads, selecting a transformer with slightly higher impedance, typically between 4.5% and 6%, helps limit short-circuit currents and protect low-voltage equipment.

Connection Group

Dyn11 is commonly used in factory distribution systems. The delta-connected primary suppresses third harmonic currents, while the star-connected secondary with neutral point supports single-phase loads and flexible grounding systems.

Insulation Class and Temperature Rise

The transformer insulation system and allowable temperature rise should comply with applicable IEC or GB standards. Adequate thermal margin is necessary for factory environments with high ambient temperatures or limited ventilation.

The 11/0.415 kV oil-filled sealed distribution transformer is widely used in factory power systems due to its high reliability, strong overload capability, energy efficiency, and low maintenance requirements. Proper selection based on load characteristics and environmental conditions ensures long-term stable operation and improved production efficiency.
