1000 kVA Compact Substation: Design Features and Typical Applications

With the upgrading of urban power distribution systems and the growing demand for industrial electricity consumption, compact substations are increasingly used in medium- and low-voltage distribution networks. Among them, the 1000 kVA compact substation has become a common configuration in commercial buildings, industrial facilities, and renewable energy projects due to its moderate capacity, flexible installation, and simple maintenance. Compared with traditional civil-built substations, compact substations integrate transformers, medium-voltage switchgear, and low-voltage distribution systems into a single enclosure, saving installation space and shortening construction time.

In modern power distribution systems, the 1000 kVA rating can meet medium-scale load requirements while maintaining good expandability. This capacity is particularly suitable for supplying power to individual factory buildings in industrial parks, sectional power distribution in commercial complexes, and distributed energy connection points. Proper design and configuration ensure long-term stable operation and reduce maintenance costs.

Basic Structure of a 1000 kVA Compact Substation

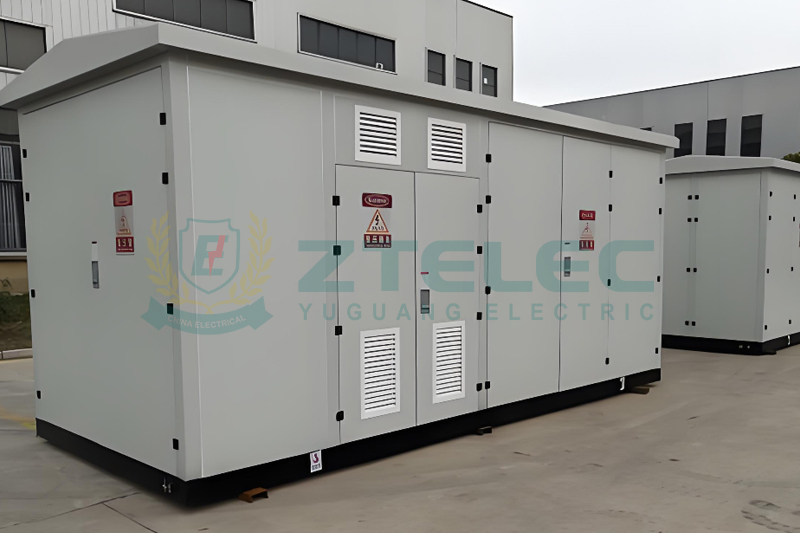

A 1000 kVA compact substation usually consists of three compartments: the medium-voltage section, transformer section, and low-voltage section. The medium-voltage compartment connects incoming power and provides protection and control functions. The transformer compartment houses either an oil-immersed or dry-type transformer. The low-voltage compartment distributes power and provides metering functions. The three-compartment layout is compact and separated by metal partitions to enhance operational safety.

The enclosure is typically made of welded steel plate or modular panels with anti-corrosion coating, suitable for long-term outdoor operation. Ventilation systems use natural airflow or forced cooling to ensure transformer temperature rise remains within standard limits during full-load operation. The protection level usually reaches IP33 or higher to prevent rainwater and dust ingress.

Space Advantages of Compact Design

The most significant advantage of compact substations is their small footprint. Traditional substations require separate buildings and equipment spacing, while a 1000 kVA compact substation can be installed directly on a simple foundation. Overall dimensions are relatively small, making it suitable for installation beside roads, near buildings, or within industrial sites.

This structure reduces cable length and power distribution losses while lowering civil construction costs. In urban projects where land resources are limited, compact design significantly improves space utilization. For temporary power supply or projects requiring fast commissioning, this solution also offers clear advantages.

Transformer Configuration and Performance Features

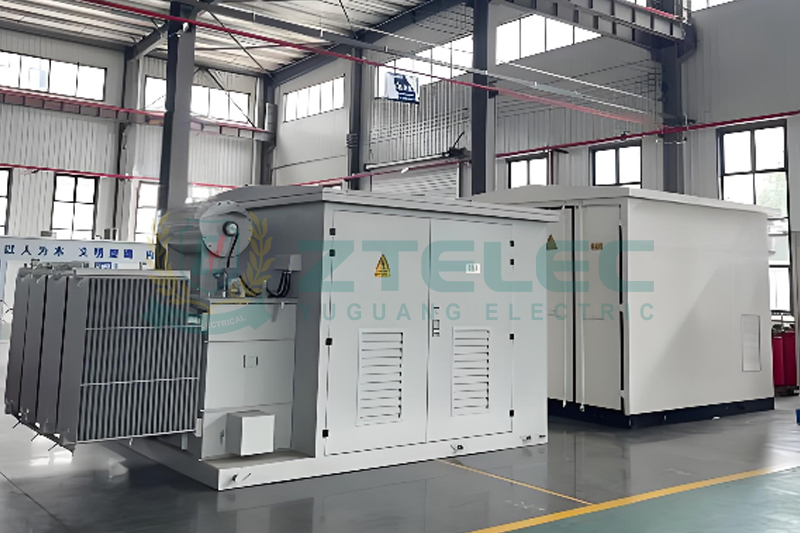

The 1000 kVA compact substation can be equipped with either oil-immersed or dry-type transformers depending on application requirements. Oil-immersed transformers provide excellent cooling performance and are suitable for outdoor operation, while dry-type transformers offer enhanced fire safety and simpler maintenance, making them ideal for populated areas.

In terms of efficiency, modern 1000 kVA substations typically adopt low-loss silicon steel cores or energy-efficient winding designs to reduce no-load and load losses. Proper cooling design ensures stable operation even in high ambient temperatures. Some projects also include temperature monitoring systems for real-time supervision.

Medium Voltage Switchgear Configuration

The medium-voltage side usually adopts ring main units or load break switch cabinets. Standard configuration includes incoming feeder units, metering units, and protection units. Depending on grid requirements, vacuum circuit breakers or load break switches can be used as the main switching device. Complete protection systems provide overload, short-circuit, and earth fault protection.

Medium-voltage equipment inside compact substations typically features fully enclosed structures for safe operation. Some models support motorized operation and remote control, making them suitable for smart distribution systems. With proper configuration, multiple substations can operate in parallel to improve supply reliability.

Low Voltage Distribution System Design

The low-voltage compartment distributes power from the transformer to load circuits. Typical configuration includes a main breaker, outgoing feeders, and metering instruments. The copper busbar system uses insulated supports to ensure current carrying capacity and short-circuit strength. Multiple outgoing circuits can be designed based on load requirements.

Modern 1000 kVA compact substations may also integrate power factor correction equipment to improve system efficiency and reduce line losses. For industrial applications, harmonic filtering devices can be added to maintain power quality.

Safety and Protection Design

Safety is a key consideration in compact substation design. The enclosure adopts a fully enclosed structure to prevent accidental contact with live parts. Each compartment is equipped with independent locks and warning signs to ensure safe operation.

An internal grounding system ensures fault currents are safely discharged. Some models include pressure relief devices to release internal pressure under abnormal conditions, improving safety performance. Fire protection design is also important, especially for commercial and public building applications.

Installation and Transportation Advantages

The 1000 kVA compact substation is assembled and tested at the factory before delivery. On-site work only involves foundation installation and cable connection. The structure is designed for safe transportation and suitable for road delivery. Installation time is short, reducing site disruption.

The prefabricated design also reduces labor requirements. For remote locations or temporary power supply needs, compact substations offer clear advantages. The entire unit can be lifted into place, minimizing commissioning time.

Typical Application Scenarios

In industrial applications, the 1000 kVA compact substation is suitable for medium-sized production lines such as machining workshops, manufacturing plants, and logistics warehouses. These loads are stable and match the 1000 kVA capacity well.

In commercial buildings, this capacity is commonly used for sectional power supply in shopping malls, office buildings, and hotels. The compact structure allows installation in basements or building surroundings without affecting architectural layout.

Renewable energy projects are also important application areas. Distributed photovoltaic plants or wind power connection points often use 1000 kVA compact substations as step-up units. The compact design allows installation close to generation arrays, reducing cable losses.

Urban infrastructure such as metro stations, hospitals, and schools also widely use this capacity rating. Stable power supply and low maintenance requirements make it suitable for public facilities.

Operation, Maintenance, and Service Life

Compact substations require relatively simple maintenance. Routine inspection includes temperature monitoring, tightening of connections, and ventilation checks. Oil-immersed transformers require periodic oil level and oil quality inspection, while dry-type transformers mainly require insulation condition checks.

Proper operating conditions help extend service life. Maintaining good ventilation, avoiding long-term overload, and regularly cleaning dust all contribute to improved reliability. Modern equipment also supports online monitoring for remote maintenance management.

Market Development Trends

As power distribution systems move toward digitalization, 1000 kVA compact substations are continuously upgraded. Intelligent control devices, communication modules, and digital monitoring systems are becoming standard configurations. Data acquisition and remote management improve maintenance efficiency.

Energy efficiency and environmental protection are also key trends. Low-loss transformers, eco-friendly insulating oil, and recyclable materials are increasingly used. Future compact substations will focus on high efficiency, reliability, and intelligent design to meet modern distribution requirements.

Overall, the 1000 kVA compact substation achieves a balance between capacity, structure, and application range. Its compact design, quick installation, and stable operation make it a common choice for industrial, commercial, and renewable energy projects. Proper design and configuration ensure long-term reliable power supply and provide a flexible and efficient solution for modern distribution systems.
