EPGC202 FR4 Laminate for PCB Manufacturing | Reliable and Cost-Effective

In printed circuit board (PCB) manufacturing, the choice of substrate directly determines the performance, lifespan, and manufacturing cost of the finished product. If you need a material that balances electrical performance with cost-effectiveness, EPGC202 FR4 laminate is a worthwhile option to consider.

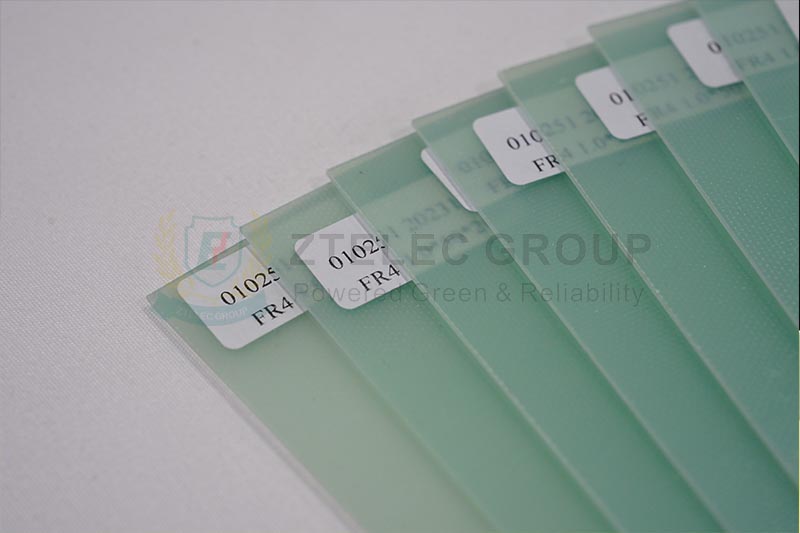

EPGC202 FR4 laminate is a composite material made of epoxy resin and fiberglass cloth through a high-temperature, high-pressure lamination process, conforming to the internationally recognized FR4 grade standard. It possesses excellent insulation properties, mechanical strength, and flame-retardant characteristics. EPGC202 is a material grade in the European standard (EN 60893) and is widely used in the manufacture of electronic and electrical equipment and in PCB processing.

Technical Specifications:

♦ Material Type: Epoxy Fiberglass Laminate

♦ Standard: EN 60893 EPGC202 / NEMA FR4

♦ Density: Approx. 1.95–2.10 g/cm³

♦ Temperature Resistance Rating: Class B

♦ Flame Retardant Rating: UL94 V-0

♦ Appearance Color: Green, Yellow, or Natural

Core Advantages of EPGC202 in PCB Manufacturing

Using EPGC202 as a PCB substrate offers the following practical benefits:

1. Excellent Machining and Forming Performance

EPGC202 exhibits good punching and shearing performance at room temperature or under preheating conditions, making it suitable for high-volume stamping of single-sided and double-sided boards. For production, this material helps reduce tool wear and drilling burrs, thereby improving production efficiency and shortening delivery cycles.

2. High Cost-Effectiveness

EPGC202 offers advantages in both material and processing costs. Compared to some high-TG or high-frequency special-purpose boards, its price is more competitive. Simultaneously, its lower processing difficulty helps reduce production defect rates and equipment wear, thus controlling overall manufacturing costs. EPGC202 is suitable for cost-sensitive but performance-critical fields such as consumer electronics, power supply equipment, and general electrical appliances.

3. Stable Electrical and Physical Performance

While optimizing costs, EPGC202 retains the basic performance of FR4 grade, including:

High insulation resistance, contributing to signal transmission integrity.

Excellent arc resistance, suitable for applications under high-voltage conditions.

Sufficient mechanical strength to stably support components and withstand normal vibration environments.

4. UL94 V-0 Flame Retardant Standard

EPGC202 FR4 meets the UL94 V-0 flame retardant rating requirements. The material self-extinguishes within a specified time after the flame source is removed, and there are no burning drips. This characteristic helps reduce the risk of equipment fire.

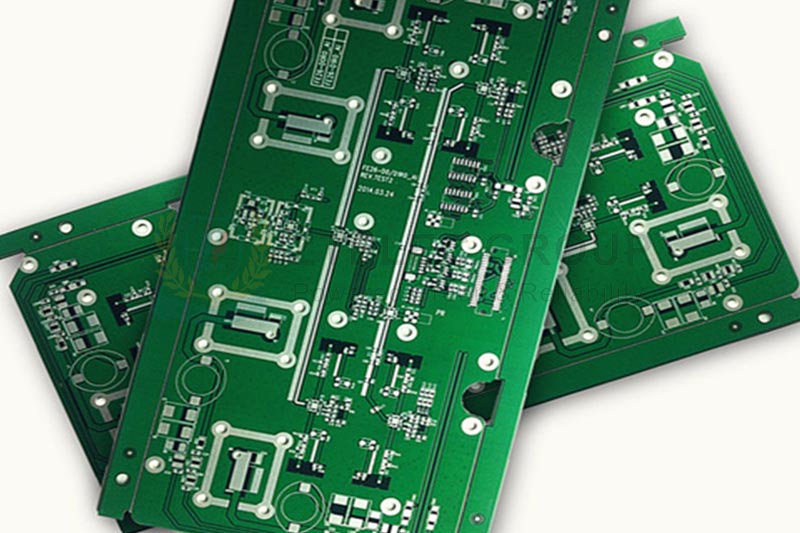

Application Scenarios of FR4 EPGC202 Laminates in the PCB Industry

EPGC202 FR4 laminates are suitable for various PCB manufacturing scenarios, with typical applications including:

Consumer electronics: such as televisions, power adapters, and appliance control boards

Industrial electronic equipment: such as industrial control devices, automation equipment, and power modules

Communication equipment: such as base station modules and signal processing units

Power electronic equipment: such as inverters, frequency converters, and power control systems

EPGC202 FR4 laminates offer a balanced solution between performance and cost. It not only meets the basic requirements of the FR4 standard for electrical insulation, mechanical strength, and flame retardancy, but also helps lower the production threshold and overall cost of PCBs due to its good processing performance.

How to Choose a Reliable EPGC202 FR4 Laminate Supplier?

When selecting an FR4 material supplier, it is recommended to focus on the following aspects:

1. Material Quality and Standards

Ensure that the product complies with EN 60893, NEMA FR4, or IEC standards and has relevant test reports.

2. Stable Production Capacity

Manufacturers with mature production processes can guarantee consistent material quality and a stable supply.

3. Processing Capacity

Some suppliers can provide CNC machining, cutting, and custom component processing services, saving customers time and costs.

4. Technical Support

Professional suppliers can typically provide material selection and technical consulting services based on customer needs.

If you are developing consumer electronics, home appliances, or industrial control equipment, FR4 EPGC202 can be considered as an alternative PCB substrate.

For more information, please contact us. We will provide technical support and material guarantees for your PCB manufacturing project.
