Why Choose G11 Insulation? | Heat-Resistant Boards & Precision Cut Components

In modern electrical equipment and industrial manufacturing, high-performance insulation materials are crucial for ensuring stable equipment operation and extending service life. Among numerous insulation materials, G11 epoxy fiberglass laminate is widely used in transformers, motors, switchgear, power electronic devices, and industrial equipment operating in high-temperature environments due to its excellent heat resistance, mechanical strength, and electrical insulation properties.

Besides being used as insulation sheets, G11 can also be precision-machined into various customized insulation components to meet the installation and usage requirements of different equipment.

This article will introduce the main reasons for choosing G11 insulation material and its typical applications in heat-resistant insulation boards and precision-machined parts.

What is G11 Insulation Material?

G11 is a thermosetting laminate composite material made by impregnating fiberglass cloth with high-temperature resistant epoxy resin and pressing it under high temperature and pressure. It meets the G-11 rating in the NEMA standard.

Its main characteristic is that it maintains high mechanical strength even under high-temperature conditions. Compared to G10 material, G11 exhibits superior flexural strength and interlaminar bonding at temperatures around 150℃, making it more suitable for use in high-temperature environments.

Key Features of G11 Heat-Resistant Insulation Board

Excellent High-Temperature Resistance

G11 material is a Class F insulation, capable of stable operation at high temperatures for extended periods. Compared to ordinary insulation boards, it maintains better mechanical and electrical properties in high-temperature environments and is less prone to aging or degradation.

High Mechanical Strength

G11 epoxy laminate has good tensile and bending strength, can withstand mechanical stress and vibration during equipment operation, and is not easy to be damaged. Its strong structural rigidity and good resistance to compression and impact make it suitable for use as structural insulation components in electrical equipment.

Stable Electrical Insulation Performance

G11 material has high dielectric strength and low dielectric loss, providing reliable insulation protection in high-voltage environments and reducing the risk of leakage and short circuits. Furthermore, its low water absorption rate minimizes the impact of humidity on its electrical performance, making it suitable for applications with high insulation requirements.

Precision Machining of G11 Insulation Material

In addition to sheet form, G11 can be machined into various customized insulation components using CNC precision cutting and other methods to meet the installation needs of different equipment.

Common machining methods include CNC milling, drilling, cutting, engraving, and surface treatment. These processes enable the production of insulating structural components with consistent dimensions and high precision, ensuring compatibility and reliability during assembly.

Key Advantages of G11 Precision Machining Parts

Good Dimensional Stability:

G11 material has a low coefficient of thermal expansion and low water absorption, allowing machined parts to maintain dimensional stability and resist deformation even in high-temperature or humid environments. It is suitable for applications requiring high precision fit.

Smooth Edges:

Complex shapes can be machined from G11 using CNC milling, waterjet cutting, or laser cutting. These parts have smooth, burr-free edges, reducing subsequent finishing work.

Structural Integrity:

During drilling, stamping, or turning processes, G11 material exhibits strong interlayer bonding, preventing delamination or cracking, ensuring the structural strength and lifespan of the final component.

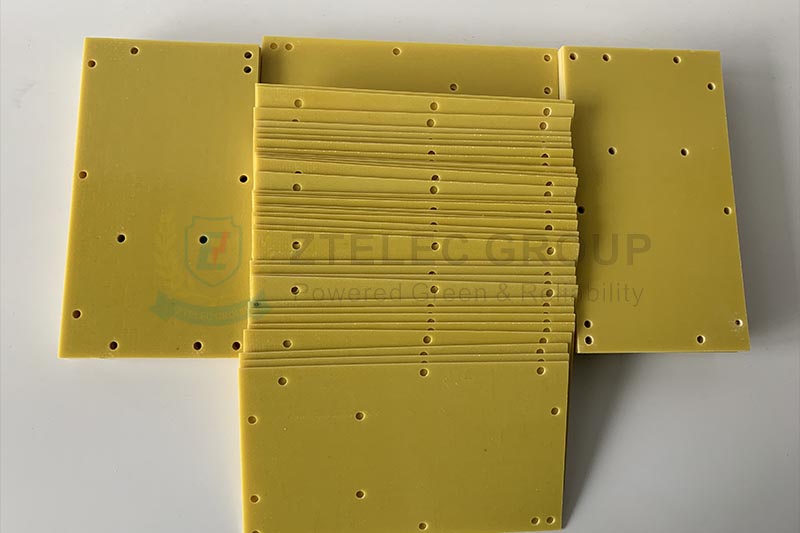

Common G11 Insulation Parts

G11 material is frequently machined into various insulation components, such as transformer insulation blocks, switchgear insulation partitions, motor insulation supports, busbar insulation boards, electrical structure supports, and high-temperature insulation gaskets.

These components, through precision machining, meet dimensional tolerance and electrical performance requirements, making them suitable for various electrical equipment.

Typical Applications of G11 Insulation Boards and Processed Parts

Due to its performance characteristics, G11 insulation materials and processed parts are used in multiple fields:

Electrical and Electronics: Used in PCB substrates, transformer coil frames, motor slot wedges, commutator isolators, etc.

Semiconductor Equipment: Used in test fixtures, thermal pads, and precision mechanical parts.

Power Generation and Transmission: Commonly used in generators and transformers for insulation supports and heat-resistant structural components.

G11 insulation materials are widely used in power equipment and industrial manufacturing due to their excellent heat resistance, mechanical strength, and electrical insulation properties. Whether used as heat-resistant insulation boards or precision-machined into various insulation structural parts, G11 provides stable and reliable performance under high temperatures and complex operating conditions.

For manufacturers of transformers, motors, switchgear, and power electronics devices, selecting high-quality G11 insulation materials and professional processing services helps improve product reliability and lifespan, enhancing market competitiveness.

Contact us for more information!
