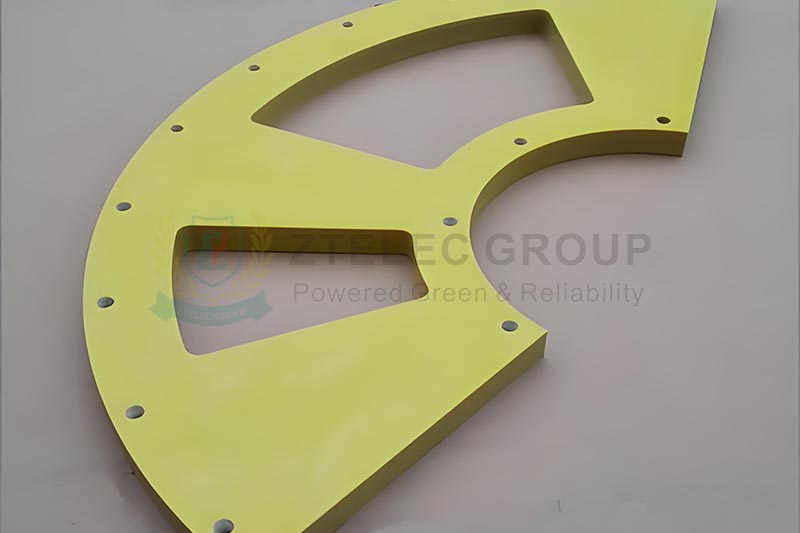

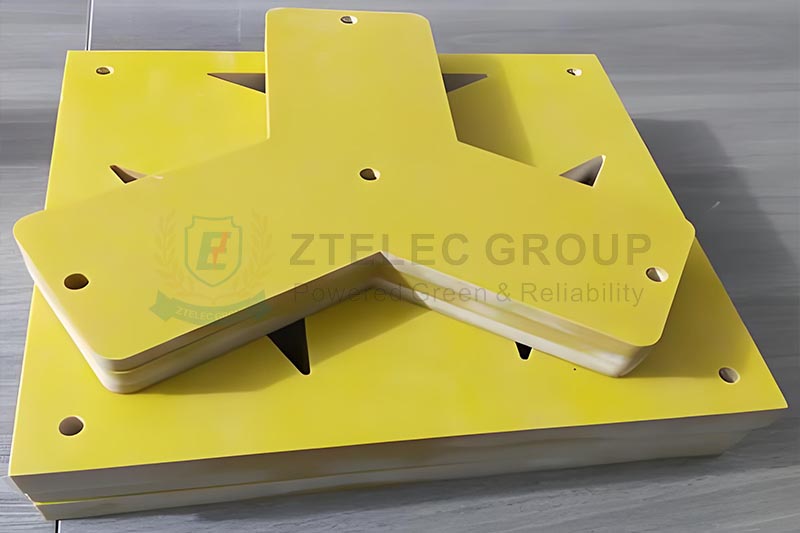

High Precision G11 Insulation Board Machined Parts | EPGC203 Custom Fabrication

With the rapid advancement of the modern industrial sector, the demand for high-performance insulation materials continues to grow. Material selection becomes particularly critical when equipment is required to operate stably in harsh environments characterized by extreme temperatures, high humidity, and intense mechanical stress. G11 insulation laminate (corresponding to the international standard IEC EPGC203) is widely utilized across industries—including semiconductor manufacturing equipment, transformers, and heavy-duty motors—due to its exceptional mechanical strength and electrical insulation properties.

G11 is a laminate material manufactured by impregnating glass fiber cloth with epoxy resin, followed by a high-temperature and high-pressure hot-pressing process. And its international standard designation is IEC EPGC203. This designation, established by the International Electrotechnical Commission (IEC), clearly defines the material's grade standards and key performance requirements.

Compared to conventional FR4 and G10 materials, G11 offers the following distinct advantages:

Superior Heat Resistance: G11 can withstand prolonged use in high-temperature environments exceeding 155°C while maintaining stable structural integrity and insulation performance.

High Creep Resistance: Under high-temperature load conditions, G11 material demonstrates excellent resistance to creep and fatigue, effectively resisting deformation.

High Mechanical Strength: Even in environments characterized by high temperatures and high humidity, G11 insulation laminate retains excellent flexural strength and impact resistance.

Good Chemical Resistance: G11 is capable of withstanding exposure to a wide range of solvents, oils, and mild acidic or alkaline media.

Why Does G11 EPGC203 Insulation Board Require High-Precision Custom Machining?

Standard G11 sheet material must undergo precision machining to be transformed into functional components suitable for use in equipment. Due to the material's high glass fiber content, cutting tools are prone to rapid wear during processing, and issues such as burrs and delamination can easily arise. Consequently, the production of high-precision G11 insulation components demands specialized machining capabilities:

1. Precision CNC Milling and Turning

Professional manufacturers utilize high-speed CNC machining centers—paired with specialized carbide or diamond-tipped tools—to achieve dimensional tolerances of ±0.025 mm or even higher precision. This meets the stringent requirements for component interchangeability and reliability demanded by precision assembly applications, such as those found in semiconductor equipment and high-voltage switchgear.

2. Burr-Free Cutting and Drilling

To address the inherent challenges of burr formation and delamination during the machining of glass fiber materials, professional manufacturers employ optimized feed rates and specialized tool geometries. This ensures that hole walls remain smooth and free of delamination, thereby safeguarding the material's critical insulation properties.

3. Machining of Complex and Irregular-Shaped Parts

Professional manufacturers offer custom machining services for a wide spectrum of components—ranging from simple insulation gaskets to intricate insulation frameworks and high-precision threaded or irregularly shaped parts. Furthermore, they possess the capability to transform G11 sheet material into complex, high-precision three-dimensional structural components, strictly adhering to design blueprints.

The Advantages of Choosing G11 EPGC203 Insulation Board Custom Machining Services

Procuring standard sheet materials for in-house processing can present challenges such as equipment limitations and low yield rates. By opting for professional IEC EPGC203 custom machining services, you gain access to the following benefits:

Reduced Overall Costs:

Customers are relieved of the need to purchase specialized carbide cutting tools or handle machining dust. Instead, a professional supplier assumes these associated risks and costs.

Shortened Lead Times:

Professional manufacturers possess mature processing techniques and ample material reserves, enabling them to respond rapidly to demands for both small-batch prototyping and large-scale production.

Assured Quality and Compliance:

The processing provider can furnish material credentials—such as UL certifications and SGS test reports—to ensure that the G11 boards comply with standards such as RoHS and IEC, and to guarantee that no inferior recycled materials are utilized.

Whether deployed in demanding electrical environments or high-stress mechanical applications, G11 insulation boards—compliant with the IEC EPGC203 standard—provide robust support to the high-end manufacturing sector through their reliable performance. Through high-precision custom machining, finished G11 components can fully leverage the material's inherent properties to meet the specific requirements of equipment for precision parts.

If you are seeking a reliable supplier for G11 EPGC203 machined components, or if you have specific requirements for custom machining based on technical drawings, we invite you to contact our technical team for a free quotation.
