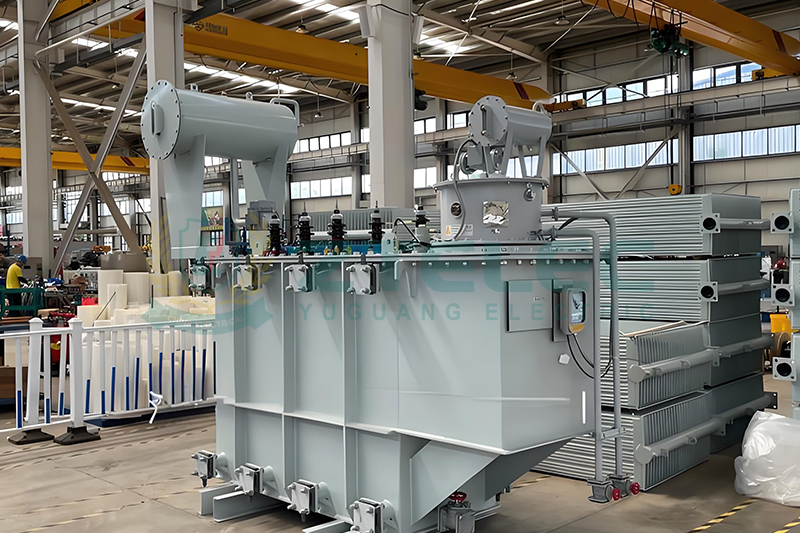

Factory Direct Supply of 5000kVA Oil-Immersed Transformers: Customization and Energy-Efficient Design

In industrial power distribution systems, infrastructure construction, and renewable energy projects, the 5000kVA oil-immersed transformer is a critical piece of electrical equipment. It plays an essential role in voltage conversion, stable power delivery, and system reliability. As modern industries demand higher efficiency, longer service life, and better operational stability, many engineering contractors and power utilities are increasingly choosing factory-direct supplied transformers.

Purchasing directly from a transformer manufacturer not only reduces procurement costs but also allows for customized engineering design tailored to project-specific operating environments. This approach ensures that the transformer operates efficiently, meets current load demands, and minimizes the Total Cost of Ownership (TCO) throughout its 10–15 year lifecycle.

Customized Design for 5000kVA Oil-Immersed Transformers

Unlike standardized electrical equipment, large-capacity transformers often need to be engineered according to the operating environment, electrical load characteristics, and installation conditions. A factory-direct manufacturer can provide flexible customization solutions to meet multi-dimensional project requirements.

Environmental Adaptability Customization

Different installation environments require different transformer design parameters. For high-altitude regions above 2000 meters, where air density is lower and heat dissipation becomes more difficult, manufacturers can optimize radiator structures and insulation systems to maintain safe operating temperatures and stable performance.

For coastal regions or areas with heavy pollution, transformers can be designed with increased creepage distance and specialized anti-corrosion coatings. These improvements enhance the reliability of external insulation and protect the equipment from salt spray, humidity, and industrial contaminants.

Load Characteristic Customization

Industrial power systems often contain non-linear or high-impact loads. For equipment such as rolling mills, compressors, and large motors, transformers can be designed with reinforced winding mechanical strength to improve short-circuit resistance and withstand sudden load impacts.

For applications involving frequency converters, rectifiers, or other harmonic-generating equipment, transformer designs can be optimized to minimize harmonic losses and reduce localized overheating, ensuring long-term stable operation.

Structural and Interface Customization

Transformer installation conditions vary depending on substation layouts and building structures. Manufacturers can customize the orientation of high-voltage and low-voltage bushings to simplify cable connections and improve installation efficiency.

Additional customization options include oil conservator capacity, Buchholz relay models, and monitoring interfaces to integrate with intelligent power monitoring systems. These design adjustments help improve operational safety and enable real-time equipment condition monitoring.

Energy-Efficient Design of 5000kVA Oil-Immersed Transformers

With global energy efficiency standards becoming stricter, low-loss transformers have become the preferred choice for industrial and utility applications. Modern 5000kVA oil-immersed transformers are designed with multiple technologies that significantly reduce energy consumption and improve overall system efficiency.

Low-Loss Silicon Steel Core

The transformer core is typically constructed using high-quality cold-rolled grain-oriented silicon steel (CRGO). This material effectively reduces no-load losses and improves magnetic flux distribution. By optimizing the core lamination structure, magnetic leakage is minimized and transformer operating efficiency is significantly enhanced.

Optimized Winding Structure

High-conductivity copper windings are widely used in modern transformer designs to reduce load losses. Advanced winding technologies such as continuous winding structures, foil windings, and precise insulation spacing help improve electrical performance while ensuring strong mechanical stability.

High-Performance Insulation System

Oil-immersed transformers rely on a multi-layer insulation system that includes insulating paper, insulation boards, and transformer oil. A high-quality insulation structure improves dielectric strength, increases the equipment’s voltage withstand capability, and significantly extends service life while reducing maintenance requirements.

Efficient Cooling System

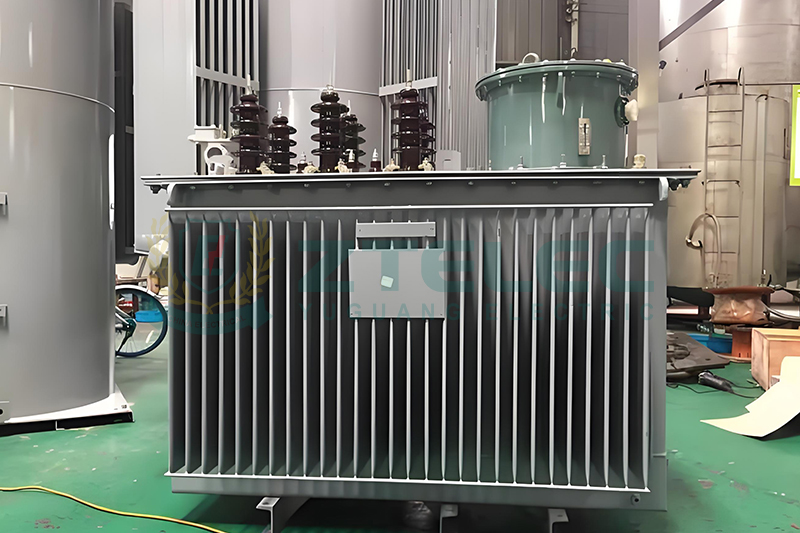

Heat dissipation plays a vital role in transformer efficiency and longevity. The 5000kVA transformer is typically equipped with an advanced cooling structure, including corrugated oil tanks, radiator fins, or forced air cooling systems such as ONAF. Efficient heat dissipation reduces temperature rise, lowers energy losses caused by overheating, and ensures stable long-term operation.

Advantages of Factory Direct Supply

Traditional transformer procurement often involves multiple intermediaries, including trading companies and procurement agents. This process can increase costs and create communication gaps in technical specifications. Factory-direct supply offers several key advantages.

First, technical parameters can be communicated directly between project engineers and the manufacturer’s design team. This ensures accurate customization for requirements such as impedance voltage, harmonic environments, and insulation levels.

Second, eliminating intermediaries helps reduce procurement costs and provides competitive factory pricing. Buyers also benefit from direct technical support, faster production scheduling, and more efficient after-sales service.

Typical Applications of 5000kVA Oil-Immersed Transformers

The 5000kVA transformer is widely used in medium-scale power distribution systems due to its high capacity and reliable performance. In manufacturing plants, it provides stable power for multiple production lines and heavy industrial equipment.

In commercial complexes and large buildings, the transformer often serves as the main incoming power distribution transformer, ensuring reliable electricity supply for lighting, HVAC systems, elevators, and commercial operations.

Renewable energy projects such as photovoltaic power stations and wind farms also utilize 5000kVA transformers as step-up or collection transformers for efficient power transmission to the grid.

In modern data centers, these transformers can serve as an intermediate voltage conversion stage for primary or backup power systems, ensuring continuous and stable electricity supply for critical digital infrastructure.

As industrial electricity demand continues to grow, the importance of high-capacity transformers in power distribution systems is increasing. The 5000kVA oil-immersed transformer offers reliable performance, high energy efficiency, and flexible customization options.

By choosing factory-direct supply from a professional transformer manufacturer, project owners can reduce procurement costs, obtain optimized engineering designs, and ensure long-term operational stability. This approach ultimately helps improve power system efficiency while lowering overall lifecycle costs.
