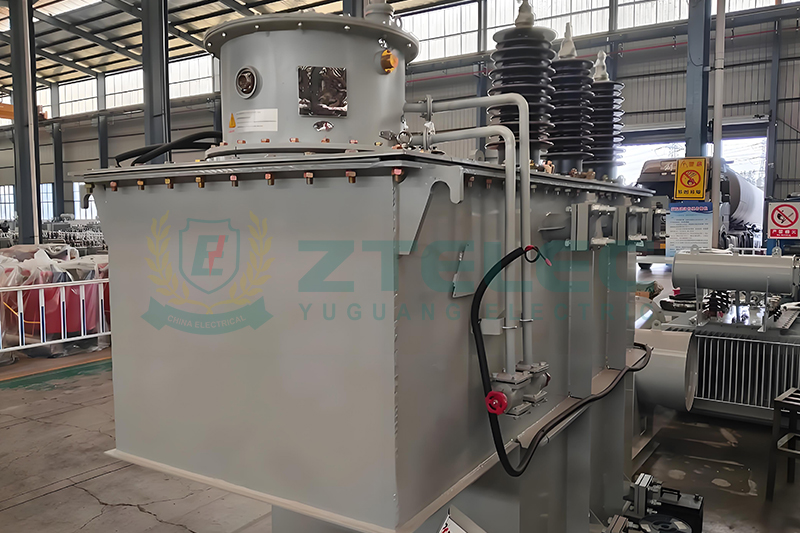

5000kVA Oil-Filled Transformer in Wind and Solar Power Grid Integration

With the rapid global transition toward low-carbon energy systems, wind and solar power projects are expanding across many regions. Renewable energy plants require reliable power conversion and transmission equipment to connect generated electricity to the public grid. In this process, the 5000kVA oil-filled transformer plays a crucial role as the core device responsible for voltage transformation and power system stability.

Thanks to its balanced capacity, mature cooling technology, and high operational reliability, the 5000kVA (5MVA) oil-immersed transformer has become a common configuration for medium-sized wind farms, photovoltaic power stations, and large energy storage systems. Proper transformer selection ensures efficient grid integration while maintaining stable voltage and minimizing transmission losses.

Key Challenges in Renewable Energy Grid Integration

Compared with traditional power plants, renewable energy projects introduce several unique challenges for power transmission and distribution systems. Transformers used in these projects must be designed to handle fluctuating generation, complex environmental conditions, and strict grid connection standards.

Power Output Fluctuations

Wind turbines and solar panels generate electricity depending on natural conditions such as wind speed and sunlight intensity. These variations cause frequent load changes and voltage fluctuations. Transformers must therefore maintain stable performance under rapidly changing load conditions while ensuring consistent voltage output for the grid.

High-Voltage Transmission Requirements

Electricity generated by renewable energy systems usually starts at low voltage levels. To connect to regional distribution networks, this voltage must be stepped up to medium- or high-voltage levels. The accuracy and stability of voltage transformation directly influence the quality and reliability of the electricity supplied to the grid.

Harsh Installation Environments

Many wind and solar power plants are located in remote deserts, mountainous regions, or coastal areas. Transformers installed in these locations must withstand extreme temperatures, high humidity, strong winds, and salt spray corrosion. Durable construction and effective cooling systems are essential for long-term operation.

Why 5000kVA Oil-Filled Transformers Are Ideal for Renewable Energy Projects

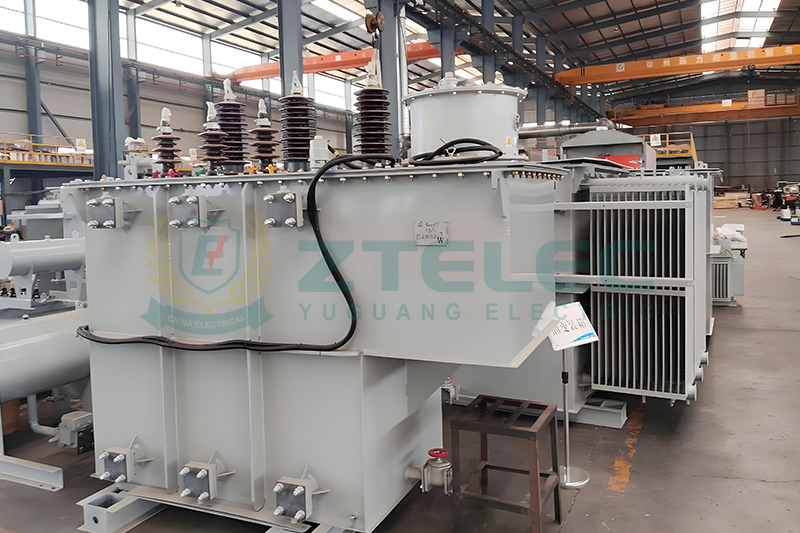

In renewable energy plants, transformers perform two essential tasks: converting voltage levels and providing electrical isolation between generation equipment and the power grid. Electricity produced by wind turbines or photovoltaic arrays, typically at voltages below 690V, must be stepped up to 10kV or 35kV through step-up transformers before entering the collector network.

The 5000kVA capacity level is widely adopted in renewable energy systems because it provides a practical balance between power capacity, installation cost, and operational flexibility.

High Capacity Compatibility

In wind power projects, modern turbines often have a capacity of around 5MW. Using a 5000kVA transformer allows the implementation of a “one turbine, one transformer” configuration. This design simplifies system wiring, improves operational independence, and enhances fault isolation capability.

In photovoltaic power stations, a 5000kVA transformer can match a solar sub-array capacity of approximately 4–5MWp. Combined with string inverters, this configuration helps reduce transmission losses in DC and AC collection systems while improving overall power conversion efficiency.

Advantages of Oil-Filled Transformer Design

Oil-immersed transformers offer significant advantages for outdoor renewable energy installations. Transformer oil serves both as an insulating medium and as an efficient cooling agent, enabling stable operation even under high ambient temperatures.

Compared with dry-type transformers, oil-filled units generally provide better heat dissipation and stronger short-term overload capability. This makes them suitable for renewable energy generation systems where output may peak during certain periods, such as midday solar production or strong wind conditions.

Technical Specifications of 5000kVA Transformers for Grid Integration

Transformers used in renewable energy projects must comply with international grid connection standards and ensure stable electrical performance. A typical 5000kVA oil-filled transformer used in wind and solar power stations includes several key technical features.

Voltage Levels and Tap Range

The high-voltage side of the transformer usually operates at 35kV or 10kV depending on the collector network design. The low-voltage side is commonly rated at 0.69kV for wind turbine systems or around 0.8kV to 1.14kV for photovoltaic inverter systems.

Voltage regulation may be implemented through off-load tap changers or on-load tap changers. In systems where grid voltage fluctuates frequently or transmission lines are long, on-load tap changers can help maintain stable output voltage.

Connection Group Design

The most widely used connection group for renewable energy transformers is Dyn11. This configuration effectively suppresses third-harmonic currents on the high-voltage side while providing a neutral grounding point on the low-voltage side, which is necessary for many inverter systems.

Impedance Voltage Optimization

The impedance voltage of a 5000kVA transformer used in renewable energy projects is typically designed between 6% and 8%. This range provides an effective balance between limiting short-circuit current and maintaining efficient power transmission with minimal losses.

Key Considerations When Selecting a 5000kVA Transformer

Harmonic Influence from Power Electronics

Photovoltaic inverters and wind turbine converters generate high-frequency harmonics that may increase transformer losses and cause localized heating. To mitigate this effect, transformers used in renewable energy projects often incorporate optimized magnetic circuits or semi-magnetic shielding structures to reduce stray losses and improve harmonic tolerance.

Temperature Variation and Moisture Control

Outdoor renewable energy installations often experience large day-night temperature differences. These changes may create internal pressure variations within the transformer tank, potentially drawing moisture into the insulation system.

To address this issue, transformers are typically equipped with oil-sealed breathers and sealed oil conservators. Fully sealed tank structures or stainless steel corrugated tanks can further improve insulation protection and extend service life.

Step-Up Connection Requirements

In some renewable energy systems, the 5000kVA transformer may serve as a step-up unit connecting directly to higher-voltage networks such as 110kV substations. In such cases, the transformer design must carefully consider insulation levels, winding configuration, and compatibility with grid protection systems.

Wind and solar power plants rely on efficient and reliable electrical infrastructure to integrate renewable energy into modern power grids. The 5000kVA oil-filled transformer offers excellent cooling performance, strong overload capability, and robust structural design, making it an ideal solution for renewable energy grid integration.

By selecting high-quality oil-immersed transformers that meet grid standards and environmental requirements, renewable energy developers can ensure stable voltage output, reduce power losses, and achieve long-term reliable operation of wind and solar power facilities.
