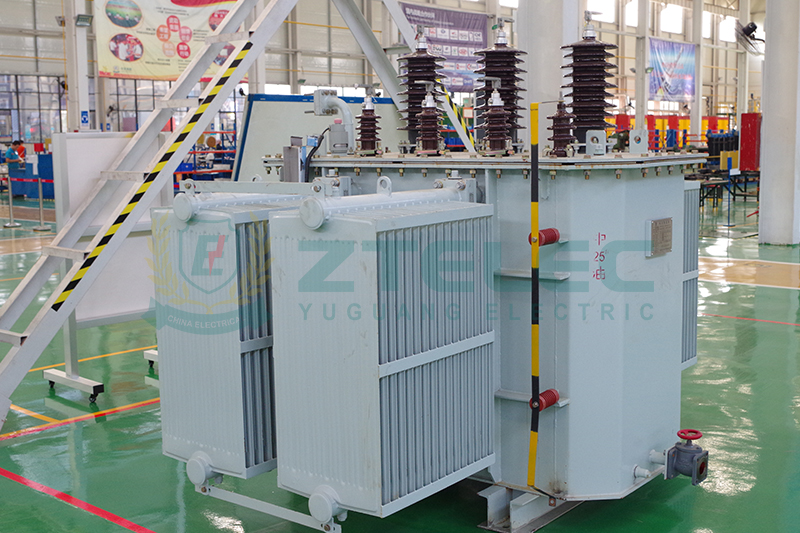

DYN11 Oil-Immersed Distribution Transformer Manufacturer | High Efficiency Energy Saving Power Transformer

With the rapid development of global industrialization and urban infrastructure, the stability and efficiency of power distribution equipment have become increasingly important for enterprises and power utilities. A reliable transformer not only ensures continuous power supply but also helps reduce long-term energy consumption and operational costs.

The DYN11 oil-immersed distribution transformer has become one of the most widely used transformer connection types in modern power distribution networks. It combines excellent power quality performance, strong load adaptability, and high energy efficiency, making it ideal for industrial plants, commercial facilities, renewable energy projects, and urban power grids.

As an experienced transformer manufacturer, we provide factory direct sales of high-quality DYN11 oil-immersed distribution transformers. This business model allows customers to obtain reliable equipment, competitive pricing, and fast technical support directly from the manufacturer.

What Does the DYN11 Transformer Connection Mean?

The DYN11 designation represents the vector group and connection method of the transformer windings. Understanding this configuration helps explain why it is widely adopted in modern distribution systems.

D indicates that the high-voltage winding uses a delta connection, commonly applied for voltage levels such as 10kV or 35kV. This structure improves system stability and allows the transformer to better handle harmonic currents.

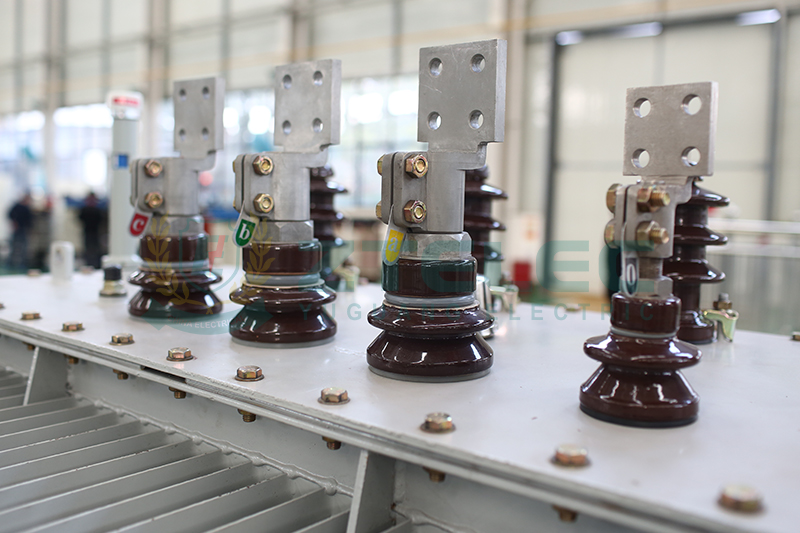

Y indicates that the low-voltage winding adopts a star connection. This configuration is widely used in distribution networks where three-phase and single-phase loads coexist.

N means the neutral point of the star connection is brought out, allowing the transformer to provide stable power for single-phase loads and grounding systems.

11 represents the phase displacement between the high-voltage and low-voltage windings, which is 330 degrees. This phase shift helps improve system stability and compatibility within distribution networks.

Because of these structural characteristics, the Dyn11 connection effectively suppresses third harmonics and performs better under unbalanced loads compared with other connection groups such as Yyn0.

Key Advantages of DYN11 Oil-Immersed Distribution Transformers

Excellent Power Quality Performance

The delta connection on the high-voltage side forms a natural circulating path for harmonic currents, which effectively suppresses third harmonic components. This significantly improves power quality and reduces the influence of harmonics on the electrical network.

Stable Neutral Point for Single-Phase Loads

The star connection with a neutral point on the low-voltage side ensures a stable voltage reference. This makes Dyn11 transformers highly suitable for systems where single-phase loads are common, such as residential buildings, commercial centers, hospitals, and data centers.

High Efficiency and Energy Saving Design

Modern DYN11 oil-immersed transformers are designed with advanced energy-saving technology. High-permeability cold-rolled silicon steel cores significantly reduce magnetic losses, while optimized winding structures minimize load losses during operation.

Compared with traditional distribution transformers, these improvements lead to lower no-load loss, reduced operating temperature rise, and improved overall energy efficiency. Over the long term, this helps users reduce electricity consumption and operating costs.

Reliable Oil Cooling and Heat Dissipation

The oil-immersed structure uses insulating mineral oil as both cooling medium and insulation material. During operation, heat generated by the windings and core is transferred to the transformer oil and dissipated through the tank surface or cooling radiators.

Common cooling methods include ONAN (Oil Natural Air Natural) and ONAF (Oil Natural Air Forced). These cooling systems allow the transformer to maintain stable performance even under continuous heavy load conditions.

Advantages of Manufacturer Direct Sales

Traditional transformer procurement often involves multiple intermediaries, including distributors and trading companies. Each additional layer can increase the final purchase cost and slow communication during the project process.

By choosing a manufacturer that provides direct sales, customers can benefit from both cost efficiency and faster technical response.

Competitive Factory Pricing

Factory direct supply eliminates the price markup added by intermediaries. Customers can obtain high-quality transformers at a more competitive price, which is particularly beneficial for large infrastructure projects or long-term procurement plans.

Direct Technical Communication

Working directly with the transformer manufacturer enables engineers and project managers to communicate technical requirements without delay. Custom specifications such as voltage ratio, capacity, cooling methods, and installation conditions can be accurately implemented during the design stage.

This direct communication also ensures faster technical support, installation guidance, and after-sales service.

Main Applications of DYN11 Oil-Immersed Distribution Transformers

DYN11 oil-immersed distribution transformers are widely used in various industries due to their reliability and adaptability to different load conditions.

In industrial manufacturing plants, they provide stable power supply for production equipment, motor systems, and automated manufacturing lines.

In commercial infrastructure, these transformers are commonly installed in shopping centers, office buildings, hospitals, schools, and residential power distribution networks.

In renewable energy projects such as photovoltaic power plants and wind farms, Dyn11 transformers are frequently used in grid connection and step-up distribution systems.

They are also widely used in urban power grids and rural electrification projects where stable and efficient distribution transformers are essential for reliable electricity supply.

Contact a Professional DYN11 Transformer Manufacturer

Choosing a high-quality transformer is essential for ensuring long-term power system stability and reducing operational costs. Our DYN11 oil-immersed distribution transformers are manufactured using advanced production technology and strict quality control standards to guarantee reliable performance.

If you are looking for a professional transformer manufacturer or need customized transformer solutions for your project, feel free to contact us. Our engineering and sales team will provide detailed technical consultation, competitive quotations, and reliable power distribution solutions.
