3500 kVA 35kV Oil-Immersed Transformers: An Efficient Power Distribution Solution for Industrial Parks

In modern industrial park development, a stable and efficient power supply system is essential for ensuring continuous production and safe operation of enterprises. As a key component of medium-voltage power distribution networks, the 3500 kVA 35kV oil-immersed transformer is widely used in industrial park substations due to its balanced capacity, reliable voltage level, and strong load-carrying capability.

With the rapid growth of manufacturing industries, industrial parks require dependable transformers that can support long operating hours, high electrical loads, and strict power quality requirements. The 3500 kVA oil-immersed power transformer provides a reliable solution for stepping down medium-voltage electricity and distributing power efficiently across various industrial facilities.

This article analyzes the technical parameters of 3500 kVA 35kV oil-immersed transformers and explains their role in industrial park power distribution systems. It also discusses important considerations for transformer selection, system configuration, and on-site installation, providing practical guidance for engineering and infrastructure projects.

Power Demand Characteristics in Industrial Parks

Industrial parks typically accommodate a large number of manufacturing enterprises, including mechanical processing factories, electronics manufacturers, new energy equipment producers, and chemical material plants. These industries share several common power consumption characteristics.

Electrical loads are often highly concentrated, as production lines include numerous machines and automated equipment with significant power ratings. As a result, the total electricity demand within an industrial park can be substantial.

Another critical requirement is power supply stability. Even minor voltage fluctuations or short-term power interruptions can cause production line shutdowns, resulting in equipment downtime and economic losses for manufacturers.

In addition, many industrial enterprises operate continuously with two-shift or three-shift production schedules. This means that the power supply equipment must maintain reliable long-term operation with minimal interruption.

For these reasons, industrial park distribution systems commonly use 35 kV medium-voltage incoming power. The electricity is stepped down through transformers to 10 kV or 6 kV levels and then distributed to individual enterprises through a structured distribution network.

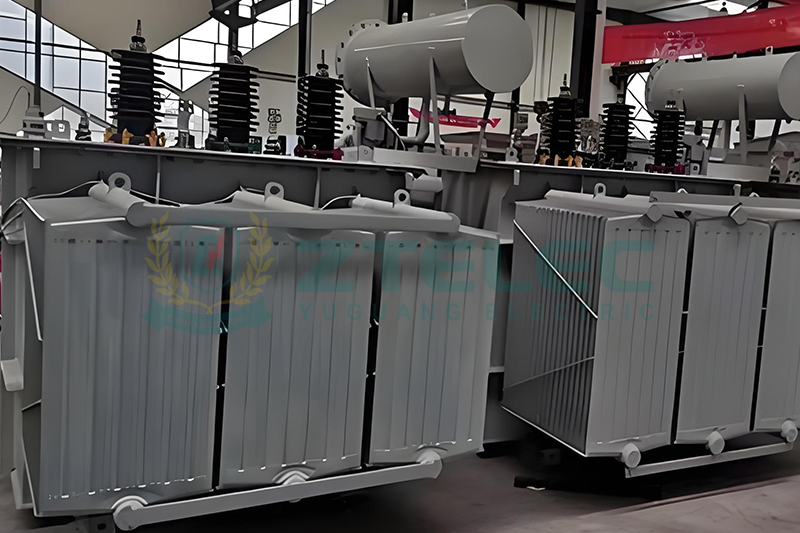

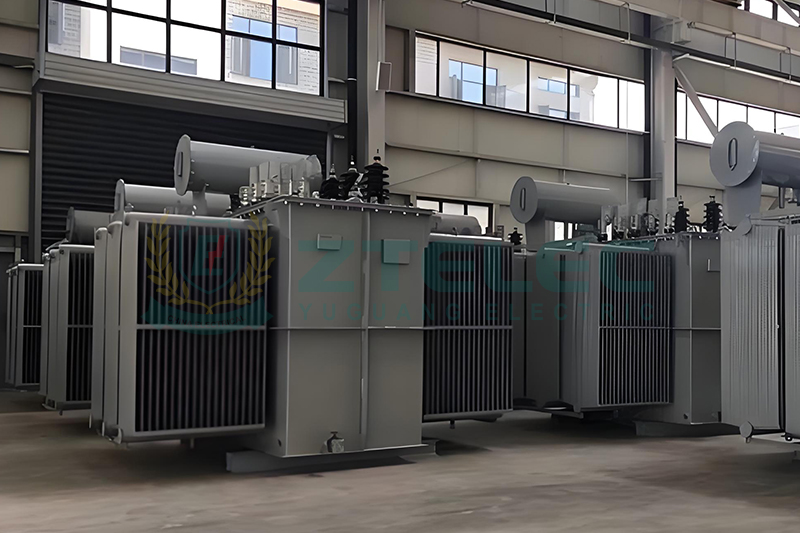

Main Technical Parameters of a 3500 kVA 35kV Oil-Immersed Transformer

When selecting a transformer for an industrial park substation, several technical parameters must be carefully evaluated to ensure reliable system performance.

Rated Capacity is typically 3500 kVA, which is suitable for medium-sized industrial parks or sectional power supply within larger industrial complexes. This capacity provides a balanced combination of load capability and investment efficiency.

Rated Voltage generally consists of a 35 kV high-voltage side and a low-voltage side such as 10.5 kV or 0.4 kV, depending on the internal distribution structure of the industrial park. The high-voltage side often includes an on-load or off-circuit tap changer, commonly with adjustment ranges such as ±5% or ±2×2.5%, allowing voltage regulation in response to grid fluctuations.

Vector Group options typically include Dyn11 or Yyn0. For industrial parks with a significant number of single-phase loads or potential three-phase load imbalance, the Dyn11 connection group is commonly preferred because it offers better harmonic suppression and improved tolerance to unbalanced loads.

Impedance Voltage generally ranges between 6% and 8%. The specific value must be coordinated with the short-circuit capacity of the system and the protection configuration of the substation.

Cooling Method for this capacity is usually ONAN (Oil Natural Air Natural). For a 3500 kVA oil-immersed transformer operating under normal environmental conditions, this natural cooling method is sufficient and allows simpler operation and maintenance.

Design Concepts for Industrial Park Power Distribution Systems

Industrial park substations are typically designed with a structured and centralized distribution architecture to improve reliability and operational efficiency.

A common configuration is: 35 kV incoming power → industrial park main substation → 3500 kVA transformer → 10 kV distribution network → end users.

This structure enables centralized medium-voltage power supply and multiple outgoing feeder circuits to supply different zones within the industrial park. It also supports hierarchical power management and reduces line losses across the distribution network.

Single Transformer Configuration

For small or medium-sized industrial parks, or during the early development phase, a single main transformer configuration is often used. A typical arrangement includes one 3500 kVA transformer combined with several 10 kV feeder cabinets for outgoing circuits.

This solution offers lower initial investment, a simplified system structure, and convenient operation and maintenance.

Dual Transformer Configuration

For industrial parks with higher power consumption or stricter reliability requirements, a dual-transformer configuration is usually recommended.

In this arrangement, two 3500 kVA transformers operate together within the substation. The system may include a double busbar or sectionalized single busbar configuration, allowing each transformer to serve as backup for the other.

If one transformer is shut down for maintenance or experiences a fault, the other transformer can continue supplying power, ensuring that essential industrial operations remain uninterrupted.

Key Installation Considerations for 3500 kVA 35kV Oil-Immersed Transformers

Proper installation is essential for ensuring the long-term safety and reliability of oil-immersed transformers. During construction and commissioning, several important aspects should be carefully addressed.

Foundation Construction must be designed according to the transformer’s dimensions and weight. A reinforced concrete foundation is typically required to provide sufficient strength and stability. The foundation surface should be level, and in some cases, roller tracks may be reserved to facilitate equipment movement or replacement.

Oil Containment Systems are required to meet environmental protection and fire safety regulations. An oil collection pit with adequate capacity should be constructed beneath the transformer to prevent transformer oil from spreading in the event of leakage.

Insulating Oil Treatment is also critical before commissioning. Transformer oil should undergo dielectric strength testing and moisture content testing to ensure it meets operational standards before filling.

Accessory Inspection must be conducted to verify the condition of key components such as bushings, oil level indicators, thermometers, and gas relays. These components should operate accurately and reliably to ensure safe transformer monitoring.

Building a Reliable Power Distribution System for Industrial Parks

The 3500 kVA 35kV oil-immersed transformer provides an effective and economical power distribution solution for industrial parks with medium-scale electrical demand. By combining appropriate transformer capacity with a well-designed distribution network, industrial parks can achieve stable power supply, improved operational efficiency, and reduced energy losses.

Before implementing a distribution project, it is recommended to work closely with professional power system designers or experienced transformer manufacturers. By considering factors such as actual load characteristics, future expansion plans, and grid connection requirements, engineers can develop a reliable and scalable power distribution solution tailored to the needs of the industrial park.
