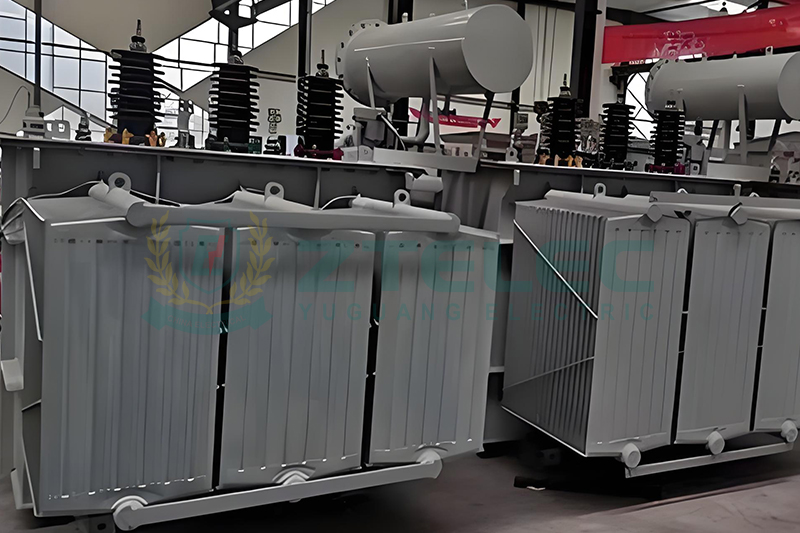

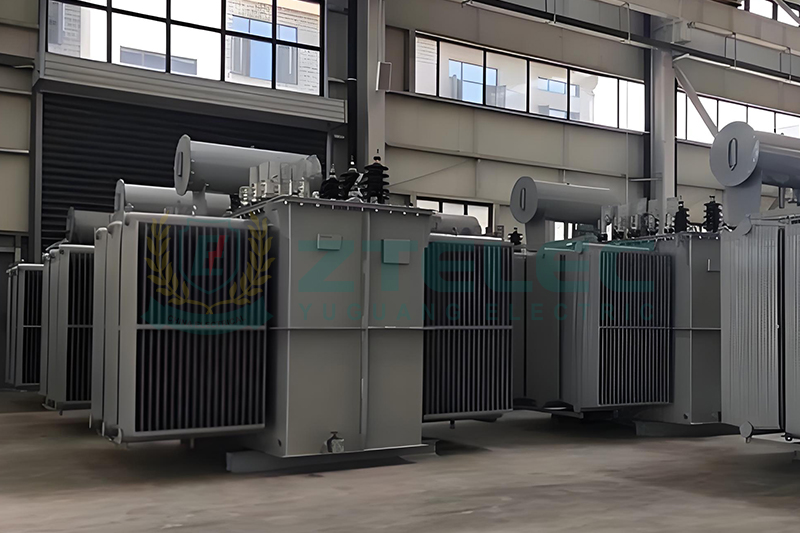

Latest Price Quotes for 3500kVA/35kV Oil-Immersed Three-Phase Transformers from Chinese SME Manufacturers

In the global power equipment market, buyers increasingly focus on both cost efficiency and operational reliability when sourcing transformers. The 3500kVA 35kV oil-immersed three-phase transformer has become a popular choice for power distribution networks, industrial facilities, renewable energy projects, and infrastructure developments. With its balanced capacity, stable performance, and high efficiency, this transformer rating is widely used in medium-voltage power systems.

For international buyers seeking competitive pricing and flexible customization, many Chinese small and medium-sized transformer manufacturers have emerged as strong suppliers in the global market. Their production capabilities, combined with cost advantages and shorter lead times, make them an attractive option for engineering contractors, EPC companies, and utility projects.

Advantages of Working with Chinese SME Transformer Manufacturers

Chinese small and medium-sized transformer manufacturers provide several advantages for overseas procurement projects. One of the most important benefits is their competitive pricing structure. Due to optimized manufacturing processes and relatively lower production costs, these manufacturers can offer highly competitive quotations compared with many international brands.

Another advantage is flexible customization. Many SMEs are capable of producing non-standard transformer designs according to project requirements, including customized voltage levels, cooling methods, connection groups, and special environmental adaptations. OEM and private-label manufacturing services are also commonly available.

Delivery speed is another major advantage. The standard production lead time for a 3500kVA 35kV oil-filled transformer typically ranges between 15 and 30 days, allowing project contractors to meet strict installation schedules. In addition, communication between technical teams is usually faster and more efficient, helping reduce delays during the engineering coordination process.

Latest Market Price Range for 3500kVA/35kV Oil-Immersed Transformers

According to recent market research and quotations from several Chinese manufacturers, the current ex-factory price of an S11 or S13 series 3500kVA 35kV/0.4kV oil-immersed transformer generally ranges from USD 18,000 to USD 35,000 per unit.

However, transformer prices are strongly influenced by raw material fluctuations. Market prices of copper, silicon steel sheets, transformer oil, and structural steel can directly impact the final quotation. As a result, the final contract price may vary depending on the timing of procurement and the detailed technical specifications required by the project.

Main Factors Affecting the Price of a 3500kVA 35kV Transformer

Winding Material: Copper vs. Aluminum

The winding material is one of the most critical factors influencing transformer price and long-term performance. Transformers with 100% copper windings provide excellent electrical conductivity, stronger overload capability, and longer service life. As a result, their price is generally higher but they deliver better reliability and lower operating losses.

Some manufacturers may offer transformers using aluminum windings or mixed materials to reduce initial costs. While these products may appear cheaper, they typically result in higher energy losses and weaker short-circuit resistance. For this reason, buyers are usually advised to request a material declaration confirming that the windings are made of pure copper.

Quality of Silicon Steel Sheets

The magnetic core material directly affects transformer no-load losses. High-quality transformers normally use new grain-oriented silicon steel sheets with high magnetic permeability, which significantly reduce energy loss and improve overall efficiency.

Some lower-cost products may use recycled or lower-grade silicon steel, which can increase no-load losses and lead to higher electricity costs over the transformer’s lifetime. Although premium materials slightly increase the purchase price, they offer better long-term energy efficiency and operating stability.

Technical Design and Manufacturing Process

The design of a medium-capacity transformer such as a 3500kVA unit requires careful engineering to ensure safety and durability. Factors such as winding structure, insulation system, oil tank design, and heat dissipation method can significantly influence both manufacturing cost and performance.

For example, optimized oil tank cooling structures and advanced vacuum drying processes can improve insulation reliability and extend the transformer’s service life, although they may slightly increase the production cost.

Accessory Configuration

The accessories included in a transformer quotation can also create significant price differences. Off-circuit tap changers are usually standard, while on-load tap changers increase the cost due to their more complex operating mechanisms.

Additional protective devices such as gas relays, oil level indicators, temperature controllers, and pressure relief devices also influence the final price. The specification of bushings and whether current transformers are integrated into the bushings can further affect the quotation depending on the project’s monitoring and protection requirements.

How to Choose Reliable Transformer Manufacturers in China

Although large manufacturers dominate certain markets, small and medium-sized factories often provide better flexibility and pricing advantages. When selecting a supplier, buyers should evaluate the manufacturer’s certifications, production capabilities, and quality control systems.

A reliable manufacturer should possess ISO 9001 quality management certification and provide official type test reports from recognized transformer testing laboratories. For international projects, transformers should also comply with IEC standards to ensure compatibility with global power systems.

Production capacity is another important factor. A typical manufacturing cycle for a 3500kVA oil-immersed transformer is around 20 to 25 days. If a supplier promises extremely low prices combined with unrealistically fast delivery, buyers should carefully verify whether the products are newly manufactured or unsold inventory.

Factory verification is also recommended. Buyers can request workshop photos, testing reports, or real-time video inspections to confirm that the manufacturer has key facilities such as vacuum drying equipment, coil winding machines, and transformer testing laboratories.

The 3500kVA 35kV oil-immersed three-phase transformer remains one of the most widely used and cost-effective pieces of equipment in medium-voltage power distribution systems. With competitive pricing, flexible customization capabilities, and fast production cycles, Chinese small and medium-sized manufacturers have become important suppliers in the international transformer market.

If you are looking for a reliable supplier for 3500kVA 35kV oil-filled transformers, working with an experienced manufacturer can help ensure product quality, competitive pricing, and timely delivery for your power distribution projects.

Contact our engineering team today to receive the latest quotation and customized transformer solutions for your project.
