3500 kVA 35kV Oil-Immersed Transformer Price & Replacement Guide | Three-Phase ONAN

The 3500 kVA 35kV oil-immersed transformer is widely used in industrial power distribution systems, where stable voltage conversion is required to support heavy equipment and continuous production. For buyers and maintenance teams, knowing the real market price and understanding how to replace aging transformers safely can help reduce downtime and control long-term costs.

This guide explains current pricing factors, technical features, and a practical replacement process for three-phase ONAN transformers.

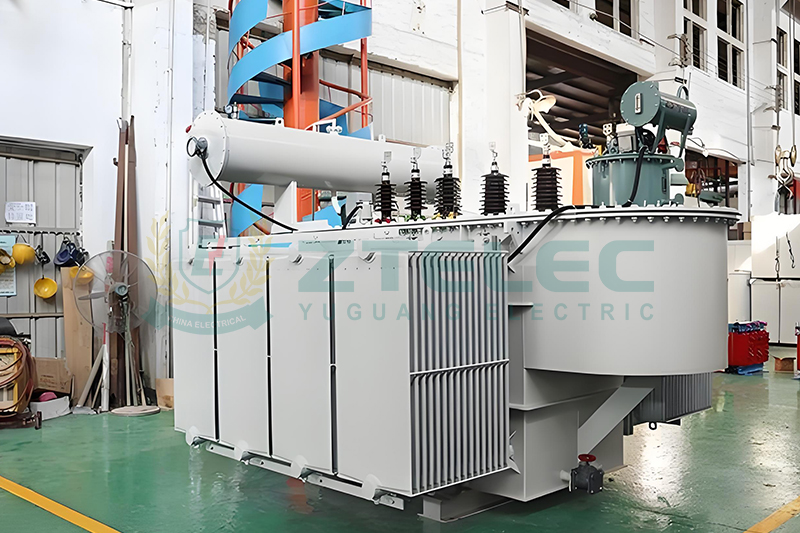

3500 kVA 35kV Oil-Immersed Transformer Price Overview

Typical Market Price Range

In the international market, especially from Chinese manufacturers, the price of a 3500 kVA 35kV oil-immersed transformer generally falls within the following range:

FOB price: USD 18,000 – 45,000

High-spec configuration: above USD 40,000

CIF price: usually 10%–25% higher depending on destination and logistics

Actual pricing depends on technical requirements, materials, and project specifications. Buyers should always confirm detailed configurations before comparing quotations.

Main Factors Affecting Transformer Price

Raw Material Costs

Copper windings and grain-oriented silicon steel make up a large portion of the total cost. Fluctuations in global copper prices can directly impact transformer pricing by 5% to 10%.

Energy Efficiency Level

Higher efficiency transformers have lower losses but higher upfront costs. Level 2 efficiency is commonly selected for a balance between cost and performance, while Level 1 offers maximum energy savings for long-term operation.

Tap Changer Type

Off-circuit tap changers are standard and cost-effective. On-load tap changers allow voltage adjustment during operation but increase overall equipment cost.

Accessories and Components

The inclusion of devices such as temperature indicators, Buchholz relay, pressure relief valve, and conservator tank can influence the final quotation.

Manufacturer and Certification

Established manufacturers with strict testing systems and international certifications may offer higher prices, but they provide better reliability and after-sales support.

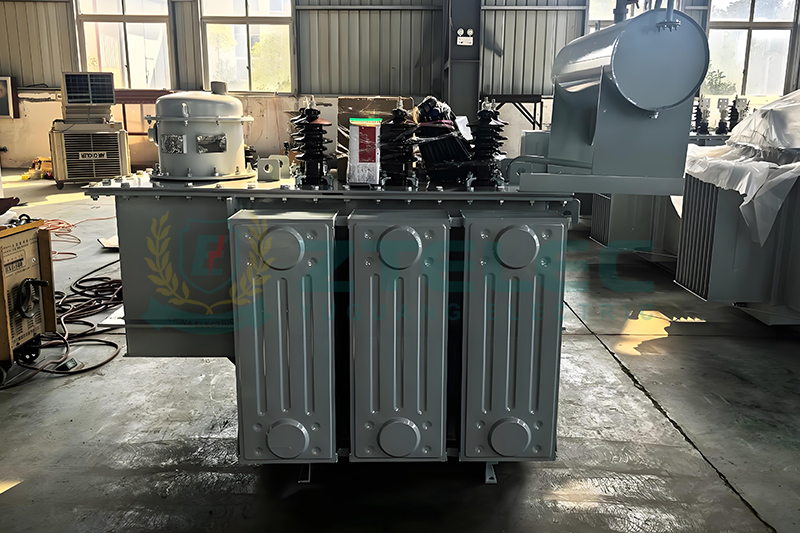

Understanding Three-Phase ONAN Cooling

ONAN stands for Oil Natural Air Natural, a widely used cooling method for oil-immersed transformers.

Transformer oil circulates naturally inside the tank, transferring heat from the windings to the radiator.

Heat is then released into the surrounding air through natural convection, without pumps or fans.

This design keeps the structure simple, reduces maintenance needs, and ensures quiet operation, making it suitable for outdoor substations and industrial applications.

For indoor installations, proper ventilation must be ensured. Without adequate airflow, heat dissipation may be insufficient under full load.

Step-by-Step Replacement of a 3500 kVA 35kV Transformer

Pre-Installation Checks

Confirm that the new transformer matches the existing foundation dimensions and installation layout.

Check impedance voltage compatibility with system protection settings to avoid operational issues.

Power Shutdown and Safety Preparation

Follow standard shutdown procedures, including isolation, verification, and grounding.

Prepare safety equipment and ensure the work area is clear before removal begins.

Removal of Existing Transformer

Disconnect all high-voltage and low-voltage connections completely.

Use appropriate lifting equipment to remove the transformer safely, as typical units weigh several tons.

Installation of New Transformer

Place the transformer on a stable base and install vibration pads if required.

For 35kV systems, vacuum oil filling is recommended to improve insulation performance.

Install accessories such as radiators, conservator, and protection devices according to design requirements.

Testing and Commissioning

Perform insulation resistance tests to ensure system safety.

Verify turns ratio and vector group to confirm correct configuration.

Measure DC resistance to check winding integrity.

Carry out power-frequency withstand voltage testing to confirm insulation strength.

Trial Operation

Conduct multiple no-load energization tests to observe inrush current behavior.

Run the transformer under load for at least 24 hours and monitor temperature and operating conditions.

The 3500 kVA 35kV three-phase ONAN oil-immersed transformer remains a reliable and cost-effective choice for industrial and utility applications. Understanding pricing structure and following a proper replacement process can help ensure long-term system stability and reduce operational risks.

If you are planning to purchase or replace a transformer, selecting the right configuration and working with a reliable manufacturer will make a significant difference in performance and lifecycle cost.
