6000kVA 11kV–33kV Dry Type Transformer Specifications: A Complete Buying Guide

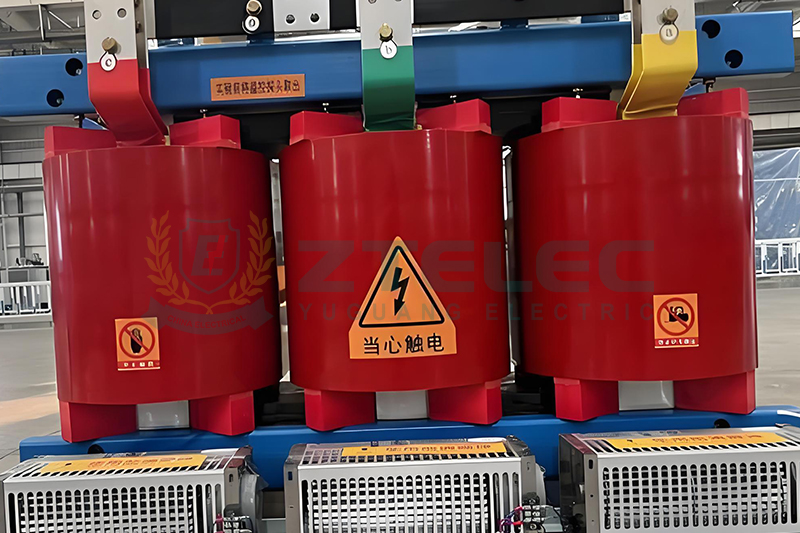

The 6000kVA 11kV/33kV dry type transformer is a key piece of equipment in modern industrial power distribution and renewable energy systems. It is mainly used to step up voltage from 11kV to 33kV, ensuring efficient long-distance transmission and stable grid connection. With its safety, environmental protection, and low maintenance advantages, it is widely applied in factories, substations, solar plants, and wind power projects.

Choosing the right transformer requires a clear understanding of core technical parameters such as rated capacity, insulation system, cooling method, and protection level. This guide provides a structured overview to help engineers and procurement professionals make informed decisions.

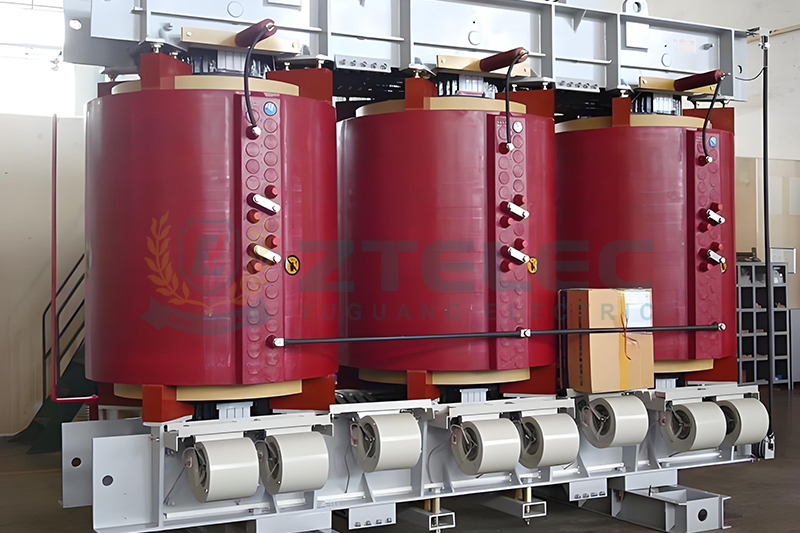

Basic Specifications of 6000kVA 11kV/33kV Dry Type Transformer

Rated Capacity: 6000kVA, suitable for medium and large-scale industrial loads, distribution systems, and grid-connected renewable energy projects.

Voltage Class: Primary voltage is typically 11kV or 33kV, while the secondary voltage can be customized such as 0.4kV or 6.6kV depending on application requirements.

Frequency: Available in 50Hz or 60Hz to match different regional grid standards.

Cooling Method: AN (natural air cooling) is suitable for stable loads, while AF (forced air cooling) improves overload capacity and is ideal for fluctuating load conditions.

Insulation System: Common options include epoxy resin cast insulation and VPI (vacuum pressure impregnation). Both provide reliable insulation performance, with epoxy resin offering better moisture resistance and VPI providing cost-effective solutions.

Key Technical Parameters

Voltage Ratio and Tap Changer: Standard ratio is 11kV/33kV. Tap changers are typically installed on the high-voltage side and include off-circuit (OCTC) and on-load (OLTC) types, with adjustment ranges such as ±2×2.5% or ±5%.

Connection Group: Common configurations include Dyn11 and YNd11. Dyn11 is widely used due to its ability to reduce harmonic distortion and improve system stability.

Impedance Voltage: Typically ranges from 6% to 8%. Higher impedance helps limit short-circuit current but may increase voltage drop and losses.

Insulation Class and Temperature Rise: Class F (155°C) and Class H (180°C) are commonly used. Temperature rise is usually limited to 100K, ensuring long service life and safe operation.

Noise Level: Generally controlled between 60dB and 75dB, suitable for most industrial environments.

Protection Level: IP20 for clean indoor environments, IP23 for light dust or humidity conditions, and IP44 for outdoor or harsher environments.

Selection and Procurement Guide

Load Requirements: Select transformer capacity based on actual load demand and fluctuation. A margin of 10% to 20% is recommended to handle peak loads and ensure long-term reliability.

Installation Environment: Evaluate whether the transformer will be installed indoors or outdoors, and consider environmental factors such as temperature, humidity, and dust to determine cooling method and enclosure protection.

Standards and Certifications: Ensure compliance with IEC or ANSI/IEEE standards. Certifications such as CE or UL may be required depending on project location and industry regulations.

Manufacturing Capability: Choose a supplier with strong production capacity and reliable delivery timelines, especially for projects with tight schedules.

After-Sales Support: Reliable technical support, including installation guidance, maintenance, and fast response service, is essential for long-term operation.

The 6000kVA 11kV/33kV dry type transformer represents a significant investment in any power system. Its performance directly affects system safety and efficiency. Instead of focusing solely on price, buyers should evaluate technical specifications, energy efficiency, safety features, and supplier reliability to achieve the best overall value.
