High-Efficiency Power Solutions: Custom 2500kVA 11kV–33kV Dry-Type Transformers

With the rapid growth of industrialization and urban infrastructure, the demand for stable, efficient, and safe power distribution systems continues to rise. Critical facilities such as data centers, wind farms, commercial complexes, and manufacturing plants depend heavily on high-performance transformers to ensure uninterrupted operation and energy efficiency.

Among medium-voltage solutions, the custom 2500kVA 11kV–33kV dry-type transformer stands out as a reliable, environmentally friendly, and highly adaptable option for modern power systems.

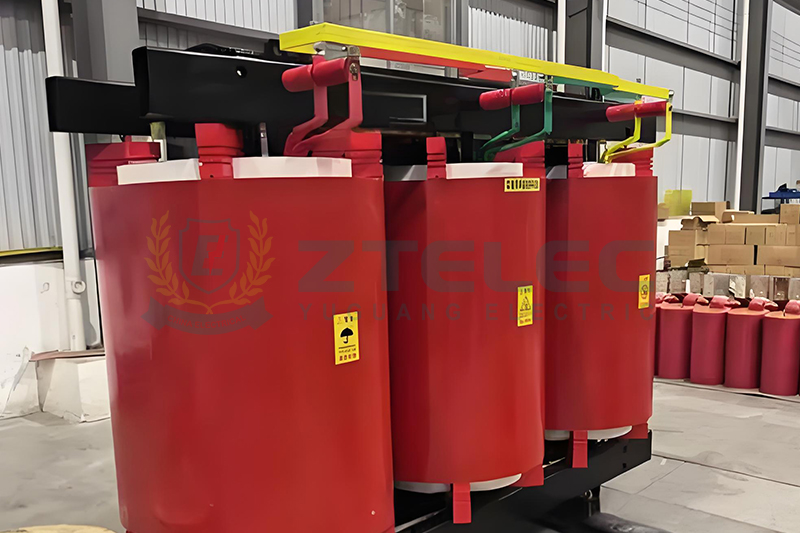

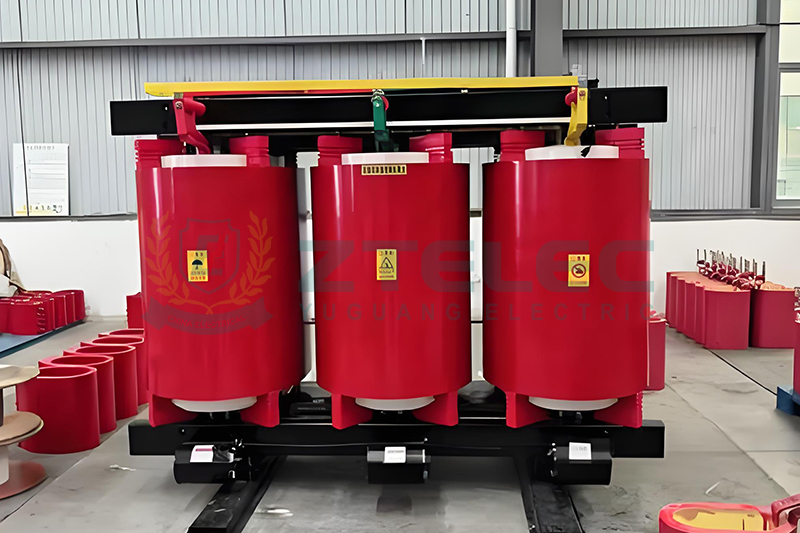

Understanding the 2500kVA 11kV–33kV Dry-Type Transformer

Rated Capacity: 2500kVA

With a rated apparent power of 2500kVA, this transformer is designed for medium-to-large-scale applications. It is ideal for powering industrial facilities, commercial buildings, and renewable energy systems that require stable and continuous electricity supply.

Voltage Class: 11kV–33kV

The transformer operates within a medium-voltage range of 11kV to 33kV on the high-voltage side and efficiently steps down electricity to low-voltage levels such as 400V or 690V for end-user equipment.

Dry-Type Technology

Unlike oil-immersed transformers, dry-type transformers use air and solid insulation materials such as epoxy resin for cooling and insulation. This oil-free design significantly enhances safety while reducing environmental risks.

Key Advantages of Custom 2500kVA Dry-Type Transformers

Superior Safety and Environmental Protection

Dry-type transformers eliminate the risk of oil leakage, fire, and explosion. They are suitable for indoor installations, including basements, high-rise buildings, and densely populated areas. Custom insulation designs further ensure compliance with strict safety and ESG standards.

Optimized Overload Capacity and Thermal Performance

Customized designs allow engineers to tailor cooling structures and insulation systems according to ambient temperature, humidity, and load fluctuations. This ensures stable operation under continuous load and temporary overload conditions.

Low Losses and High Energy Efficiency

By utilizing advanced core materials such as amorphous alloy or high-grade silicon steel, along with optimized winding configurations, customized transformers can significantly reduce no-load and load losses. Efficiency levels can exceed 98%, helping reduce long-term operating costs.

Compact Design and Flexible Installation

Customized transformers can be designed to fit limited installation spaces. Options such as top-entry or side-exit cable configurations and compact structural layouts make them ideal for prefabricated substations, containerized systems, and indoor installations.

Why Choose a Customized Transformer Solution?

Standard transformer models may not fully match the specific requirements of every project. Customization ensures that the transformer is precisely engineered to align with actual grid conditions, environmental factors, and operational demands, resulting in improved performance and longer service life.

Key Parameters for Transformer Customization

Electrical Specifications

Define primary voltage (11kV, 22kV, or 33kV), secondary voltage (e.g., 400V or 690V), and connection group such as Dyn11 to ensure compatibility with your power system.

Operating Environment

Provide details such as installation altitude, ambient temperature, humidity levels, and the presence of dust, salt mist, or corrosive gases.

Performance Requirements

Clarify priorities such as energy efficiency, low noise operation, or high short-circuit resistance to guide the design process.

Installation Conditions

Share available installation space, layout constraints, and load-bearing requirements to enable optimal structural design.

Custom 2500kVA 11kV–33kV dry-type transformers provide a high-efficiency, safe, and environmentally friendly solution for modern power distribution systems. Their flexibility, low maintenance requirements, and superior performance make them an ideal choice for industrial, commercial, and renewable energy applications.

If you are planning a new project or upgrading your power system, contact our team today for professional consultation, custom design, and full lifecycle support to ensure reliable and efficient operation.
