2000 kVA Oil-Immersed Copper Winding Transformer: Substation Selection and Engineering Application Guide

The 2000 kVA capacity level belongs to the medium-to-large range in distribution transformer product series, balancing power supply capability and engineering implementation cost. In this capacity range, oil-immersed copper winding transformers are widely used as main transformers in substations and industrial power distribution systems due to their high reliability, low losses, and long service life. Compared with aluminum windings, copper windings offer better conductivity and mechanical strength; compared with dry-type transformers, oil-immersed structures provide superior heat dissipation and overload capability. Therefore, for projects requiring high power supply reliability, the 2000 kVA oil-immersed copper winding transformer offers significant advantages.

Product Positioning and Typical Specifications

This capacity range is suitable for long-term stable operation in substation main transformers or large distribution systems, offering capacity margin, energy-saving performance, and controllable maintenance costs.

Core Technical Parameters

Engineering Advantages of Copper Windings

In the 2000 kVA capacity range, the initial cost difference between copper and aluminum windings has narrowed, but the lifecycle performance advantages of copper remain significant. Copper windings have lower resistivity, reducing load losses under identical operating conditions. For substations operating continuously, the energy-saving benefits are considerable. Copper windings also provide higher mechanical strength, improving resistance to deformation under short-circuit current impacts and enhancing transformer reliability and post-fault recovery capability.

Advantages of Oil-Immersed Structure

Structure and Key Components

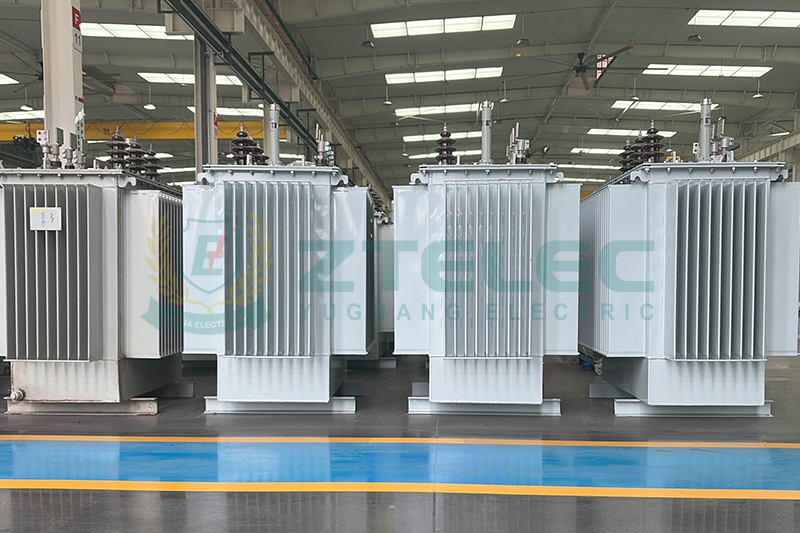

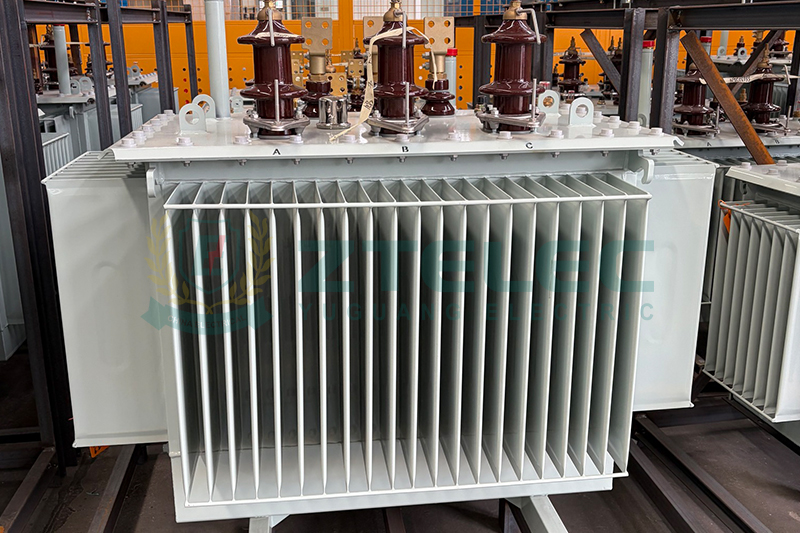

The 2000 kVA oil-immersed transformer consists of core, windings, and tank, with cooling system and protective accessories. The core uses high-permeability silicon steel laminations to reduce no-load losses. High and low voltage windings are arranged coaxially and insulated using paper and oil ducts. The tank adopts a sealed welded structure with radiators for improved heat dissipation.

Standard accessories include conservator, breather, gas relay, oil temperature indicator, oil level indicator, high and low voltage bushings, and pressure relief valve. An on-load tap changer can be installed for voltage regulation according to substation requirements.

Substation Application Scenarios

Energy Efficiency and Loss Standards

The 2000 kVA oil-immersed transformer must meet relevant efficiency standards. High-efficiency level transformers feature lower no-load and load losses, reducing long-term energy costs. In large project tenders, losses are often evaluated using capitalization methods, directly affecting lifecycle economics.

Installation and Maintenance

The weight of a 2000 kVA oil-immersed transformer is typically around 6 tons. Installation requires consideration of foundation load capacity and lifting space. The foundation should include an oil containment pit and drainage system. Before commissioning, insulation testing, ratio testing, and oil analysis are required. During operation, oil temperature and load should be monitored to extend insulation life and ensure safe operation.

Selection Recommendations

For substation projects, the 2000 kVA oil-immersed copper winding transformer is a mature and reliable solution. Procurement should focus on efficiency level, copper winding certification, tap changer range, and test reports. For critical power systems, full material inspection reports and initial oil baseline data are recommended to support future maintenance and condition monitoring.
